C216 Inflatable Restraint IP Module
C216 Inflatable Restraint IP Module

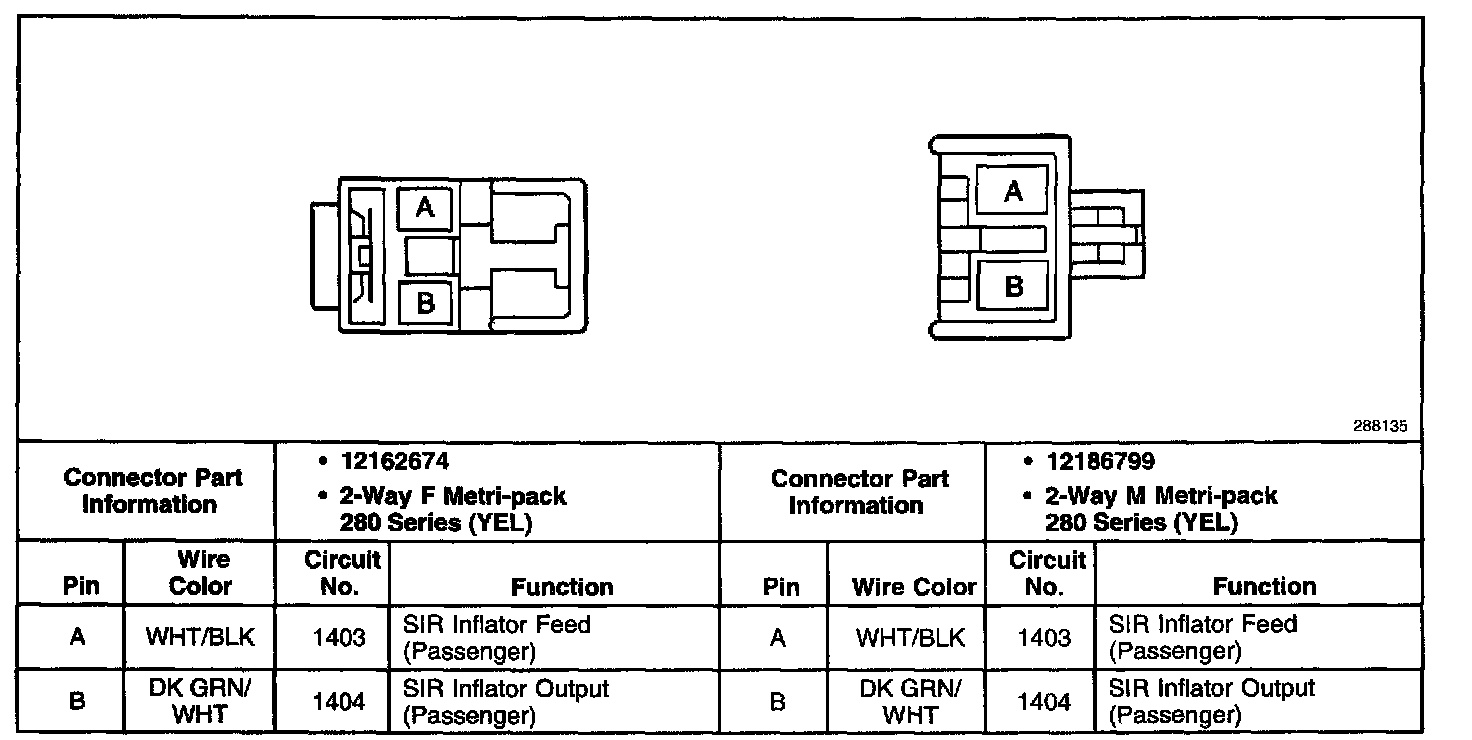

In-Line Harness Connector C216, Inflatable Restraint IP Module (Right):
