Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C100 - C199
>>
C102
C102

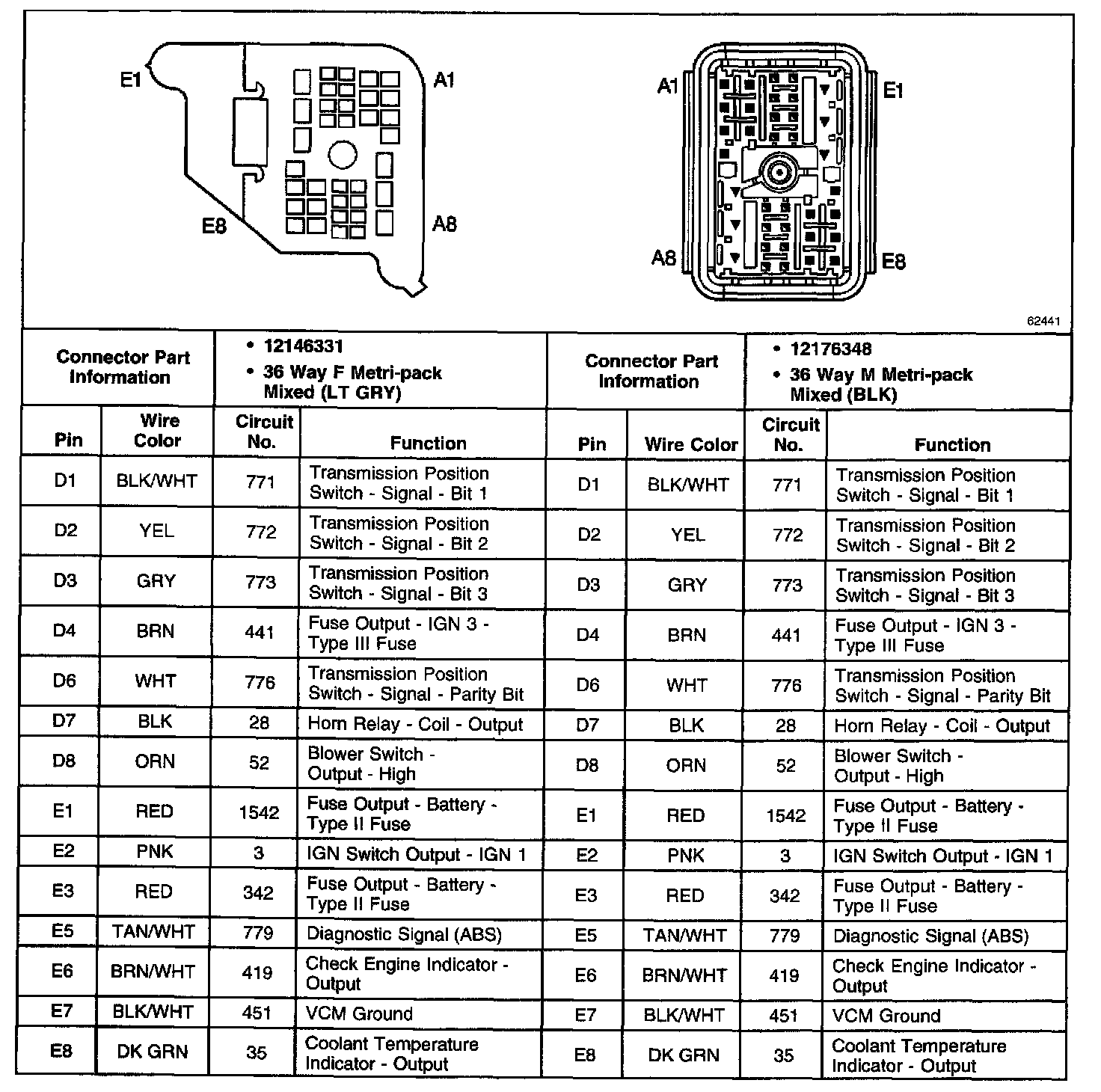

In-Line Harness Connector C100 (Part 1 Of 2):
In-Line Harness Connector C100 (Part 2 Of 2):
