Underhood Fuse-Relay Center Connector (Export)

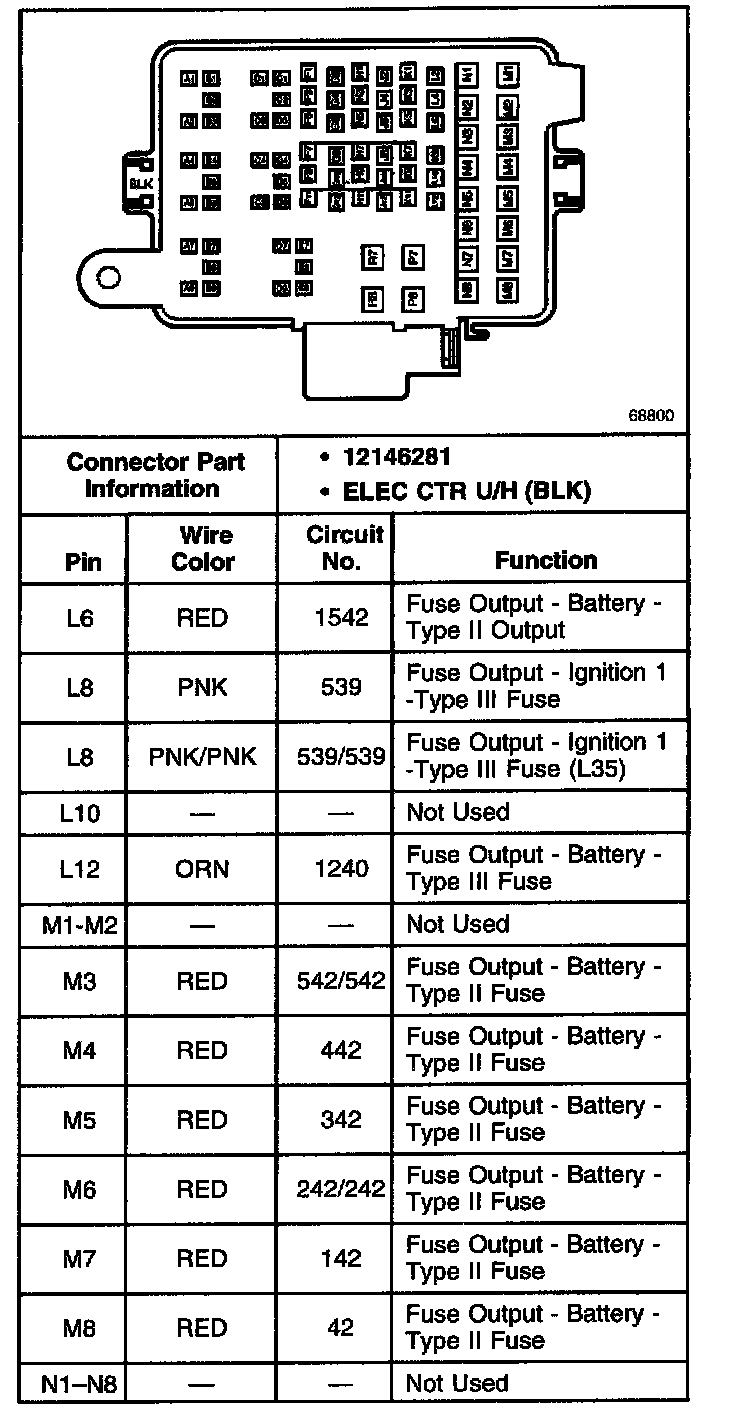

Underhood Fuse-relay Center Connector(Export) (Part 1 Of 4):

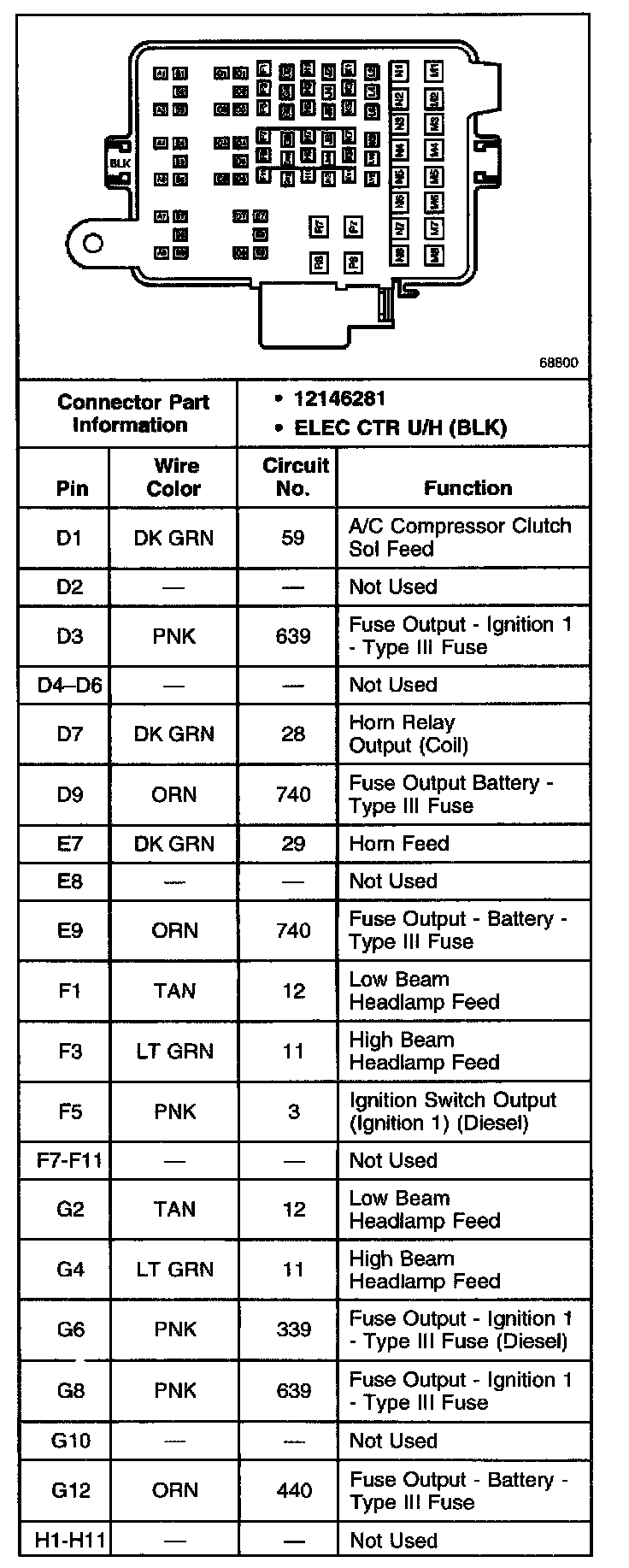

Underhood Fuse-Relay Center Connector(Export) (Part 2 Of 4):

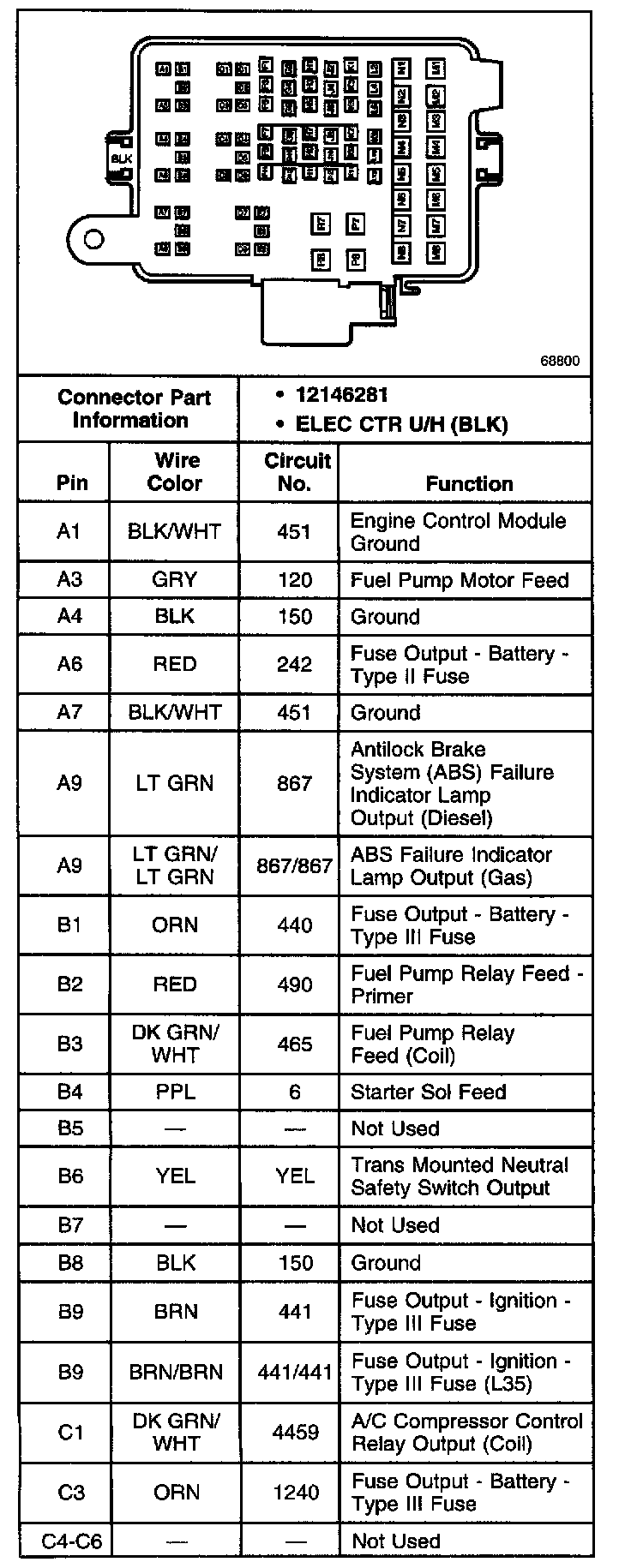

Underhood Fuse-Relay Center Connector(Export) (Part 3 Of 4):

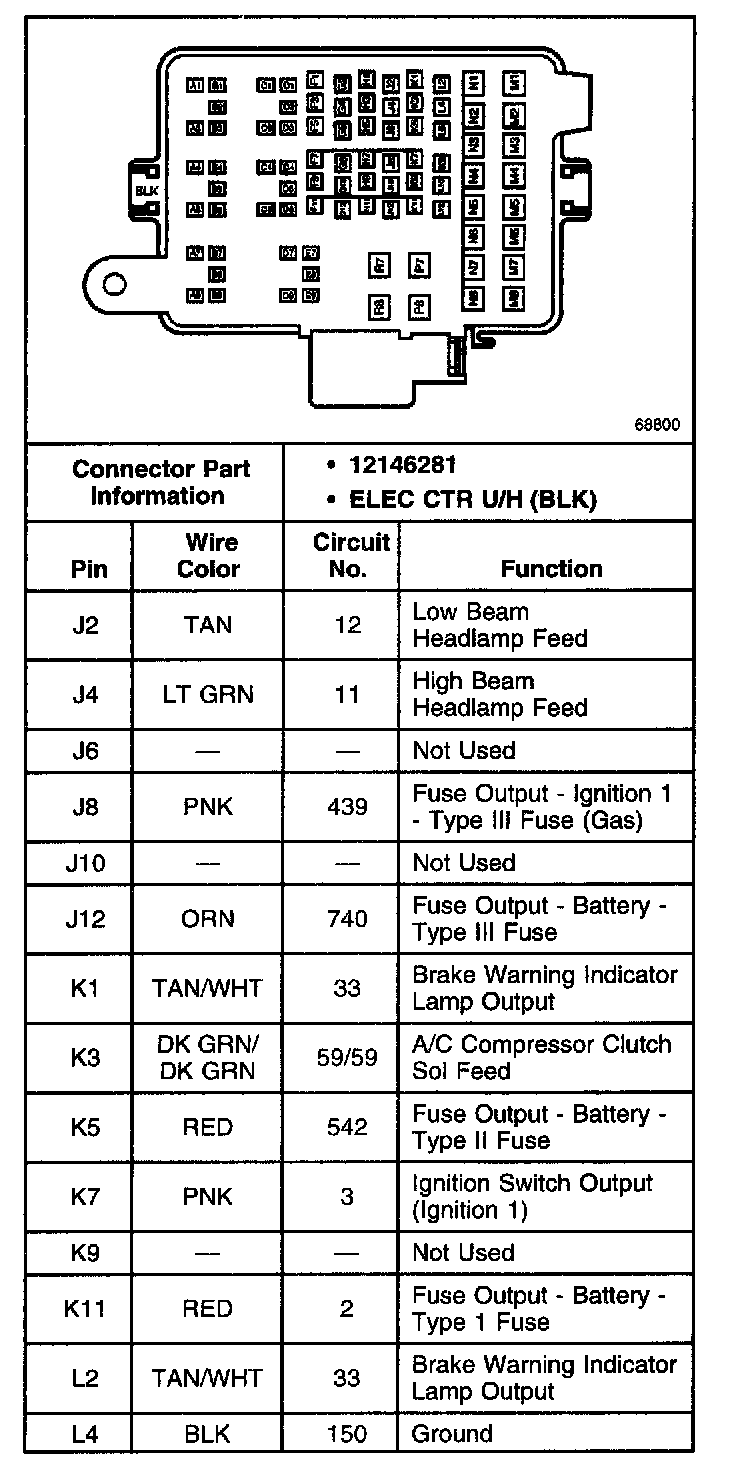

Underhood Fuse-Relay Center Connector (Part 4 Of 4):
