Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
IP Fuse Block Connector
IP Fuse Block Connector

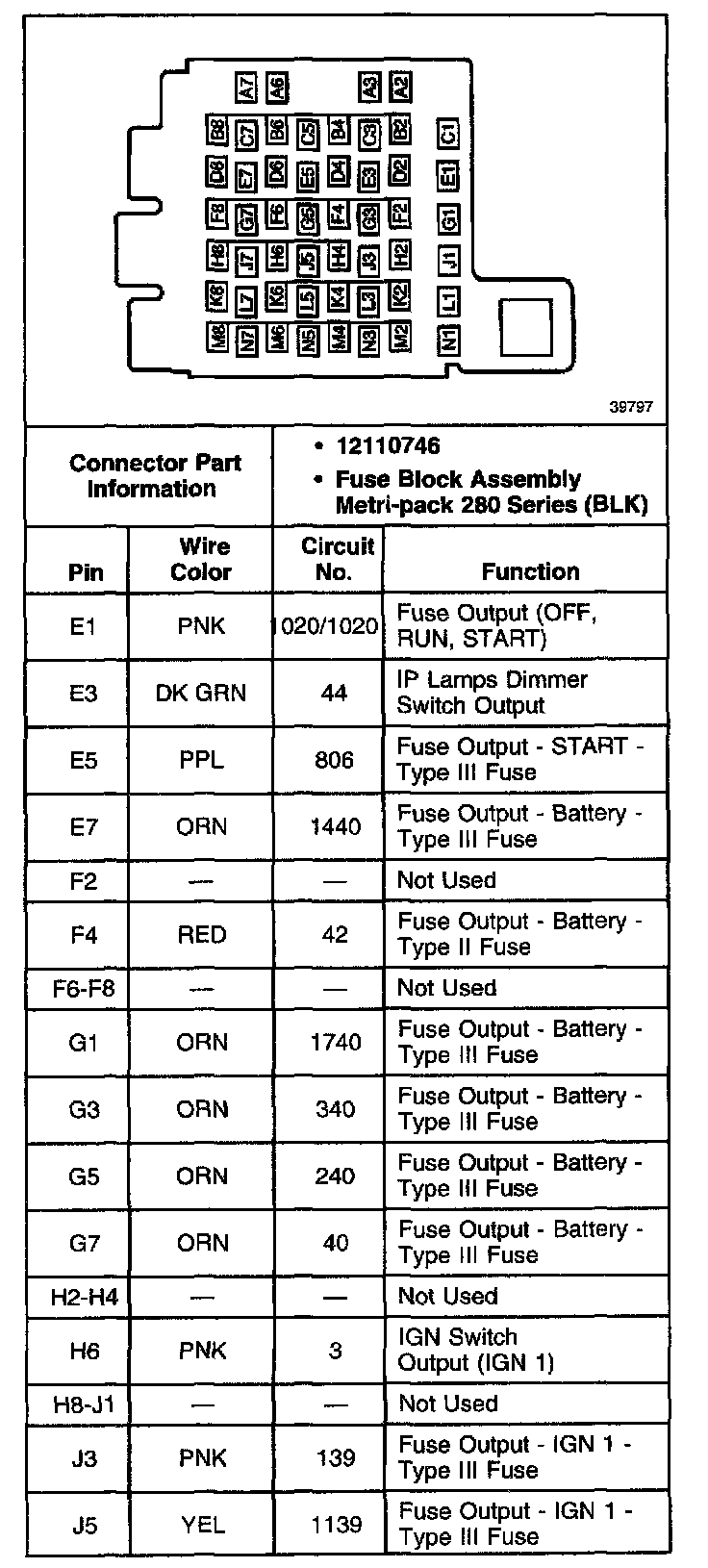

IP Fuse Block Connector (Part 1 Of 3):

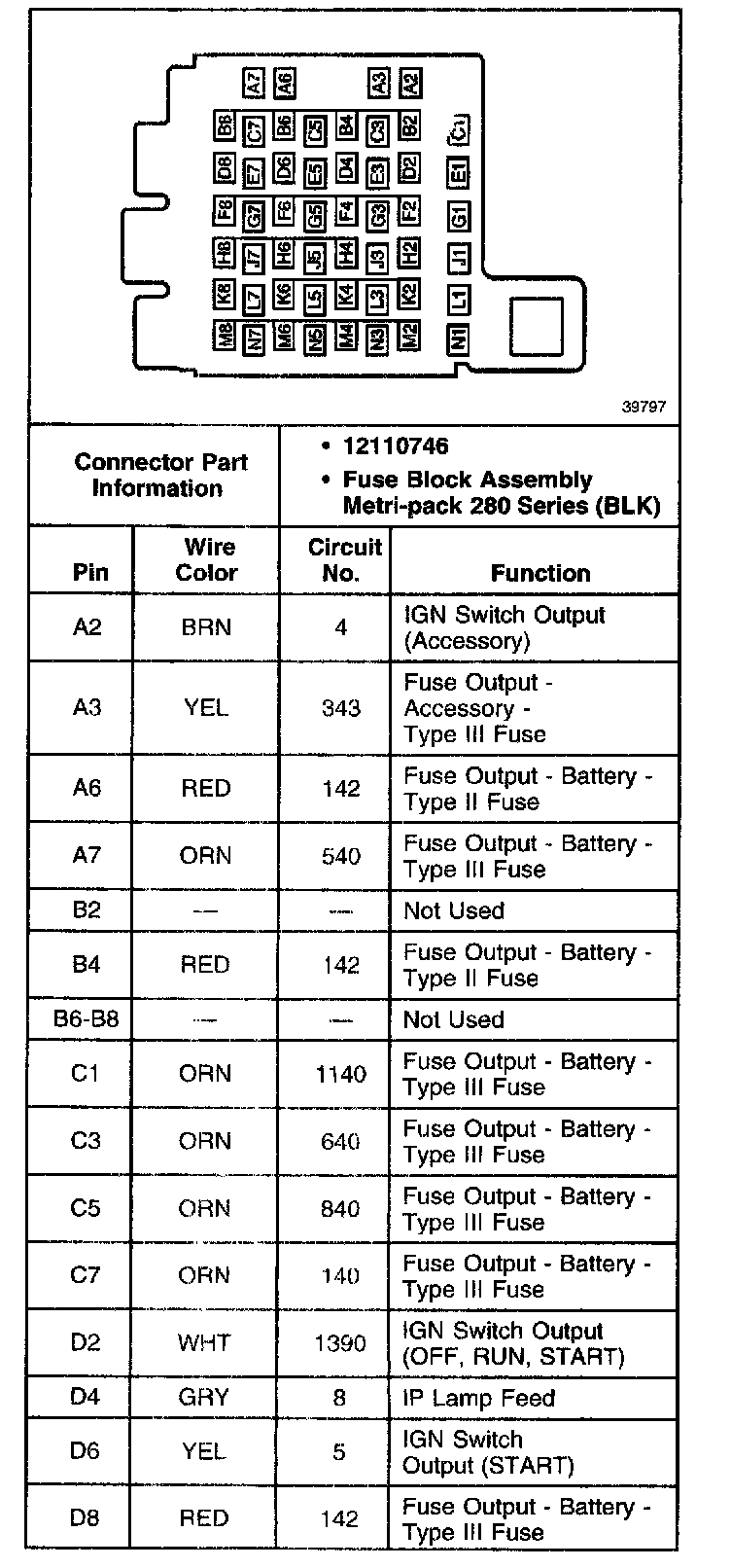

IP Fuse Block Connector (Part 2 Of 3):

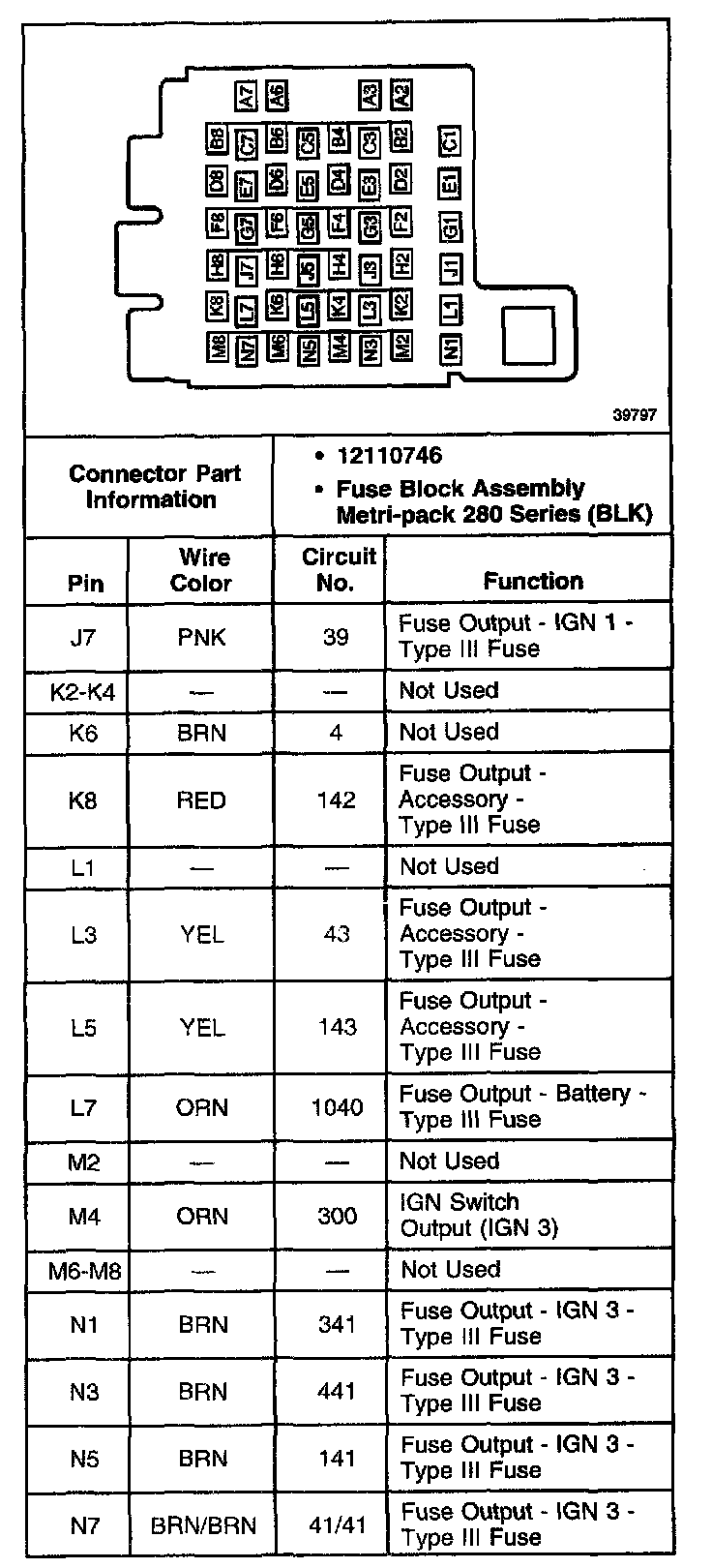

IP Fuse Block Connector (Part 3 Of 3):
