Upfitter Distribution
Upfitter Distribution

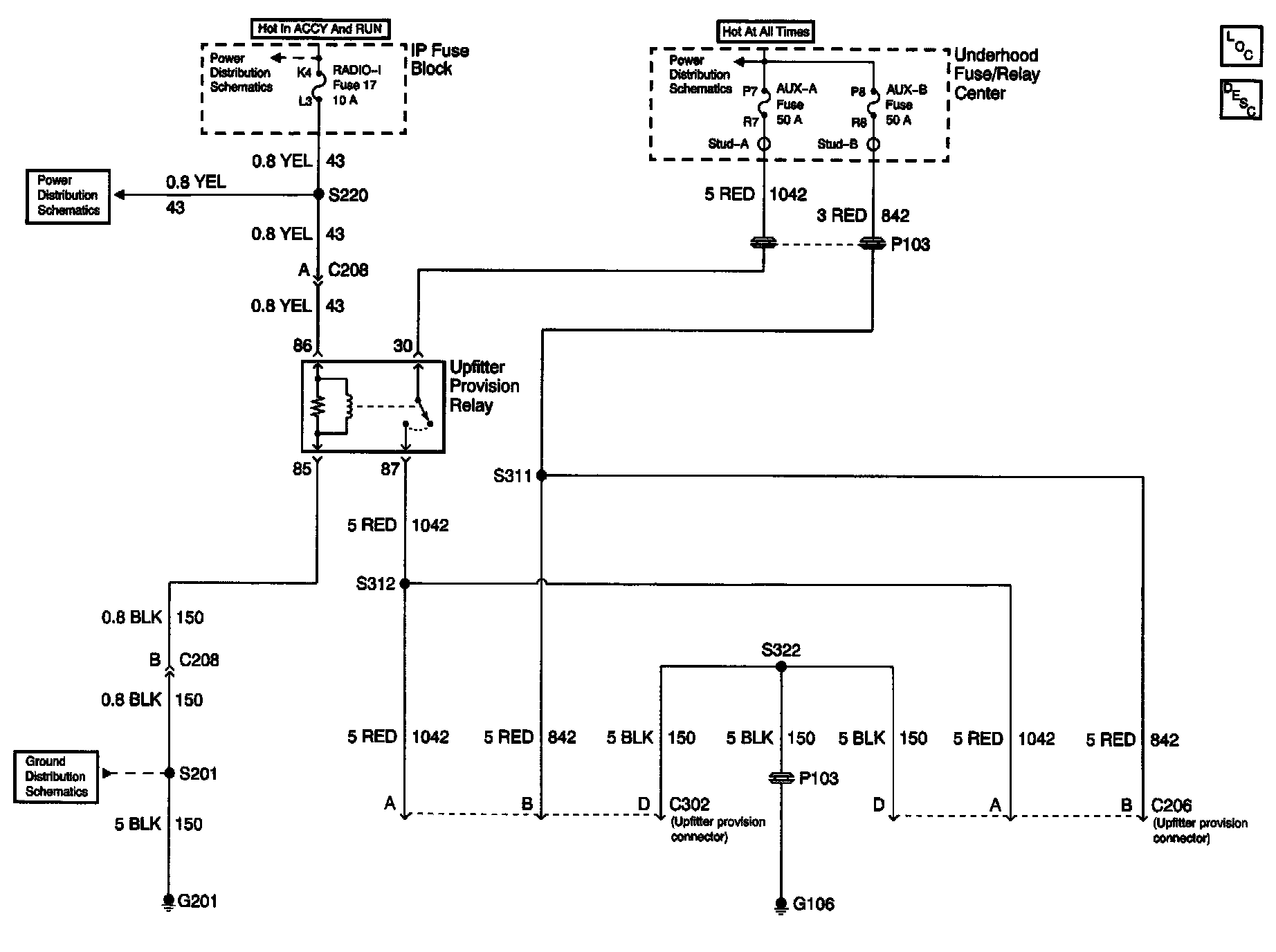

Upfitter Provision Schematics: RADIO-1, AUX-A, And AUX-B Fuses, Upfitter Provision Relay, G201, And G106:
