Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> ILLUM

ILLUM

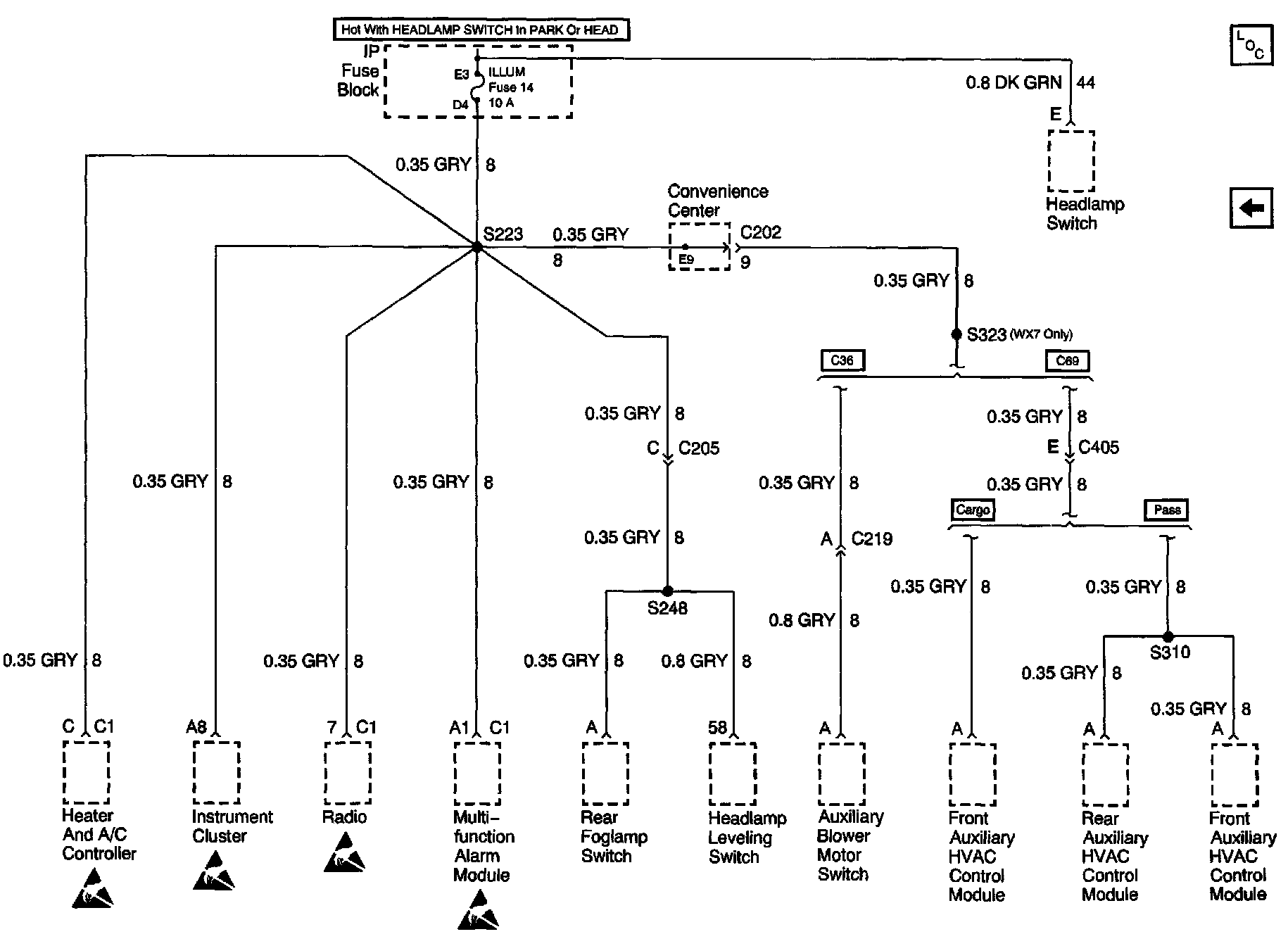

Power Distribution Schematics: ILLUM Fuse And Headlamp Switch:
