Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Rear Drive Axle - Locking/Limited Slip Rear Axle
>>

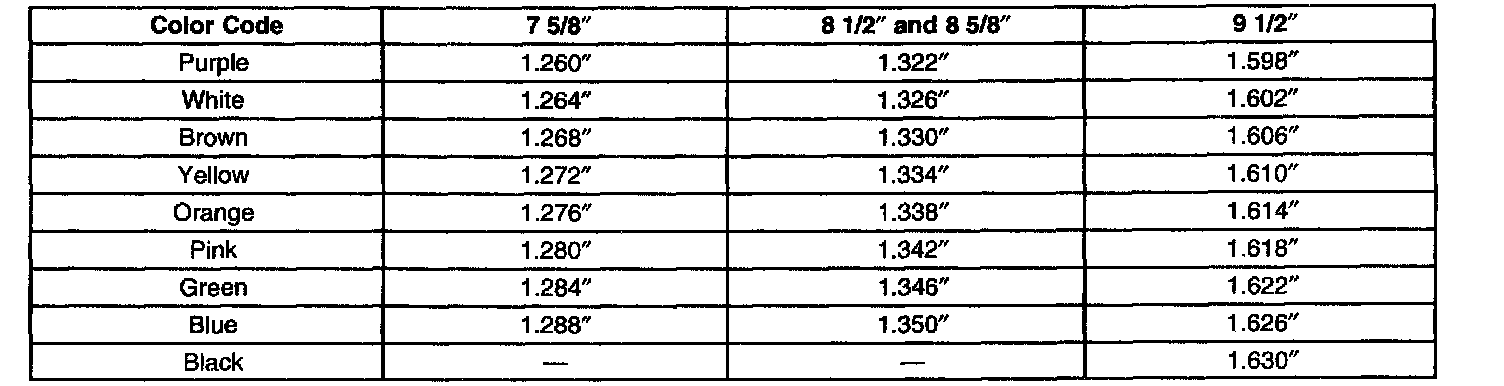

Thrust Block Sizes (Locking)
Thrust Block Sizes (Locking)
