Fuel Level Sensor: Service and Repair

REMOVAL PROCEDURE

Tools Required
^ J34730-1A Fuel Pressure Gauge
^ J 39765 Fuel Sender Lock Nut Wrench

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Relieve the fuel system pressure. Refer to the Fuel Pressure Relief Procedure.
3. Drain the fuel tank. Refer to Fuel Tank Draining Procedure.
4. Remove the fuel tank.
5. Remove the fuel sender assembly.

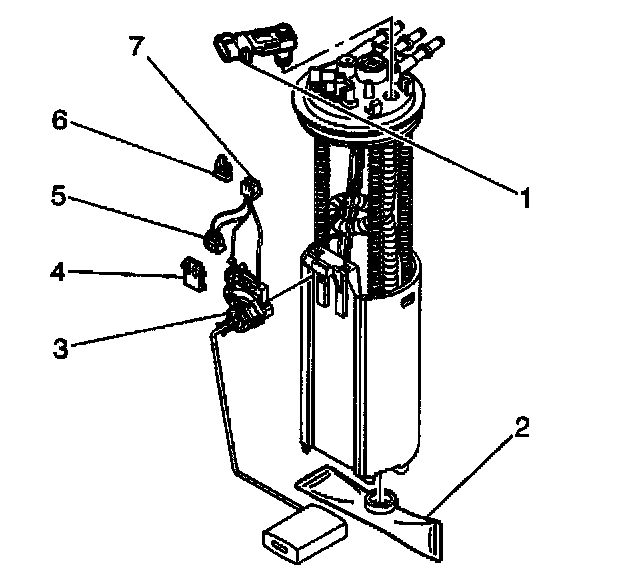

6. Disconnect the fuel pump electrical connector (5).
7. Remove the fuel level sensor electrical connector retaining clip (6).
8. Disconnect the fuel level sensor electrical connector (7) from under the fuel sender cover.
9. Remove the fuel level sensor retaining clip (4).
10. Squeeze the locking tangs, and remove the fuel level sensor (3).

INSTALLATION PROCEDURE
1. Install the fuel level sensor (3).
2. Install the retaining clip (4) to the fuel level sensor.
3. Connect the electrical connector (7) to the fuel level sensor.
4. Connect the electrical connector retaining clip (6) to the fuel level sensor.
5. Connect the fuel pump electrical connector (5).
6. Install the fuel sender assembly.
7. Install the fuel tank.
8. Refill the fuel tank.
9. Install the fuel filler cap.
10. Connect the negative battery cable.
11. Inspect for leaks.
11.1. Turn the ignition ON for 2 seconds.
11.2. Turn the ignition OFF for 10 seconds.
11.3. Turn the ignition ON.
11.4. Inspect for fuel leaks.
