Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Parking Brake Release Switch >> Locations

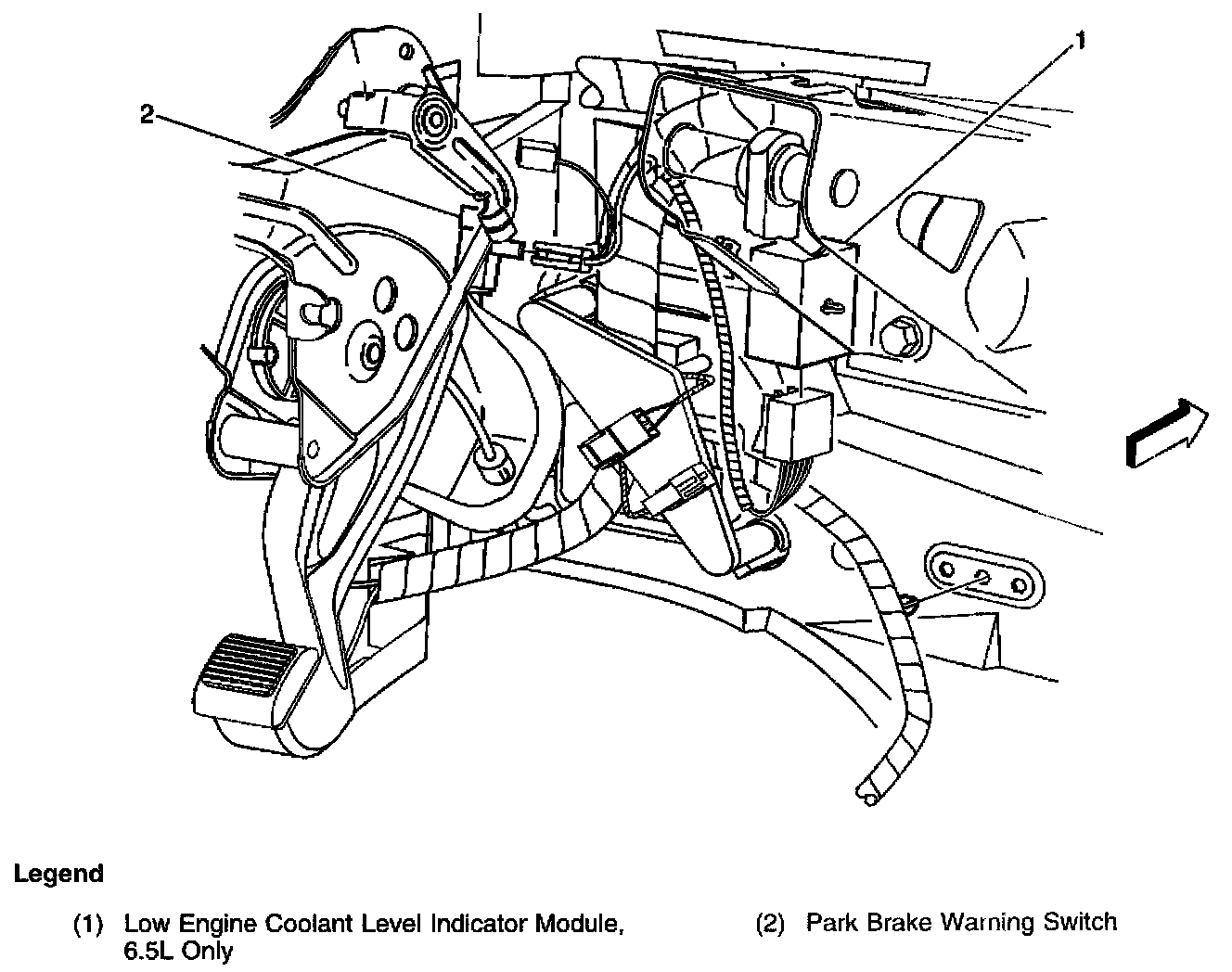

Parking Brake Release Switch: Locations

Locations View:




Locations View:




Near the left kick panel on the parking brake lever

Under LH side of IP
