Seat Belt: Service and Repair

REMOVAL PROCEDURE

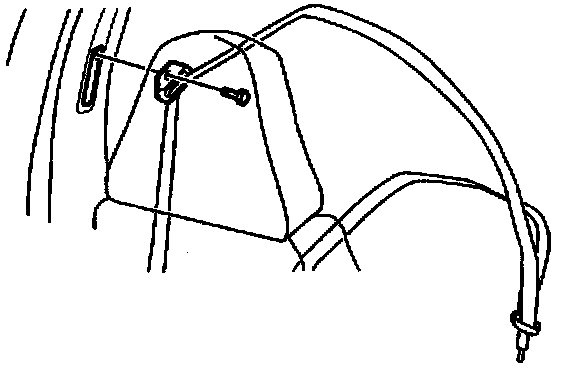

1. Remove the shoulder/seat belt guide retaining bolt from the shoulder belt guide adjuster.
2. Remove the shoulder/seat belt guide from the shoulder belt guide adjuster.
3. Remove the front door upper pillar garnish molding.
4. Remove the front door lower pillar garnish molding.

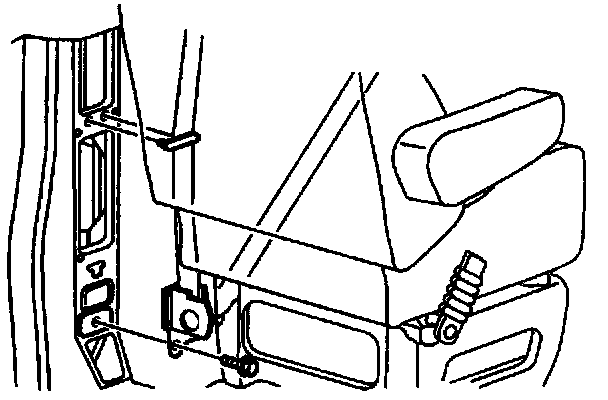

5. Remove the shoulder/seat belt retractor retaining bolt from the lower pillar.
6. Remove the shoulder/seat belt retractor assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the shoulder/seat belt retractor assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the shoulder/seat belt retractor retaining bolt to the lower pillar.

Tighten
Tighten the shoulder/seat belt retractor retaining bolt to 52 N.m (38 lb ft).

3. Install the front door lower pillar garnish molding.
4. Install the front door upper pillar garnish molding.




5. Install the shoulder/seat belt guide to the shoulder belt guide adjuster.
6. Install the upper shoulder/seat belt guide retaining bolt to the vehicle.

Tighten
Tighten the upper shoulder/seat belt guide retaining bolt to 52 N.m (38 lb ft).
