Seat Belt Height Adjuster: Service and Repair

REMOVAL PROCEDURE
1. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
2. Remove the shoulder/seat belt guide from the guide adjuster.
3. Remove the front door upper pillar garnish molding.

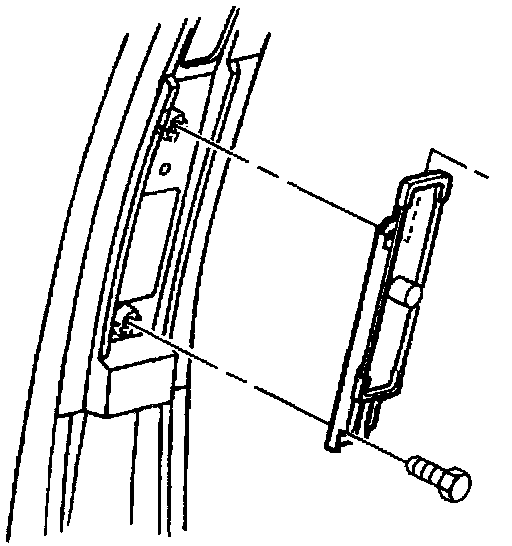

4. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
5. Remove the shoulder/seat belt guide adjuster from the vehicle.

INSTALLATION PROCEDURE




1. Install the shoulder/seat belt guide adjuster to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the shoulder/seat belt guide adjuster retaining bolts to the pillar.

Tighten
Tighten the shoulder/seat belt guide adjuster retaining bolts to 52 N.m (38 lb ft).




3. Install the shoulder/seat belt guide to the guide adjuster.
4. Install the shoulder/seat belt guide retaining bolt to the guide adjuster.

Tighten
Tighter the shoulder/seat belt guide retaining bolt to 52 N.m (38 lb ft).

5. Install the front door upper pillar garnish molding.
