Rear

REMOVAL PROCEDURE

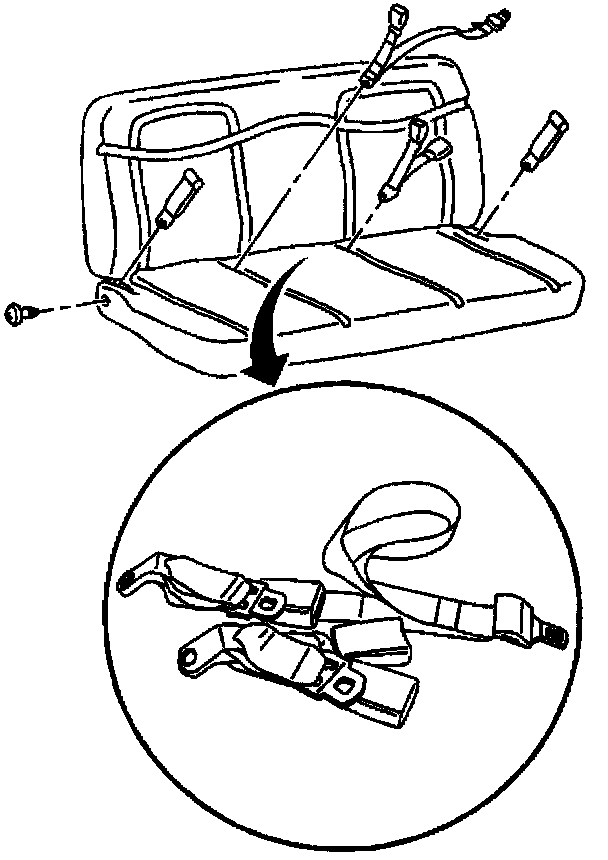

1. Partially remove the seat cushion cover in order to gain access to the seat belt buckle retaining bolt.
2. Remove the seat belt buckle retaining bolt from the seat frame.
3. Remove the seat belt buckle from the seat frame.

INSTALLATION PROCEDURE
1. Install the seat belt buckle to the seat frame.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle retaining bolt to the seat frame.

Tighten
Tighten the seat belt buckle retaining bolt to 52 N.m (38 lb ft).

3. Install the seat cushion cover to the seat frame.
