Child Restraint Tether Anchor

REMOVAL PROCEDURE




1. Reach over the back of the bench seat and remove the child seat top tether from the top tether anchor (1).
2. Remove the child seat.

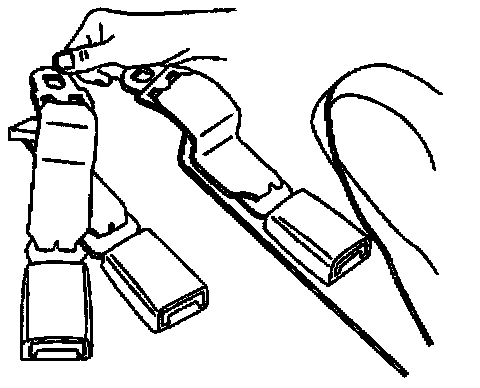

3. Remove the respective belt buckle bolt from the frame weld nut.
4. Remove the buckles.




5. Inspect the anchors, pivot points, belts, and buckles for damage, and replace if necessary

INSTALLATION PROCEDURE




1. Install the seat belt buckles for the child seat, positioning the anchor to the rear of the seat to extend beyond the seat and the cushion.
2. Install the child seat.
3. Fasten the child seat top tether to the top tether anchor (1).
