Child Restraint Belt Tether Location

INSTALLATION PROCEDURE

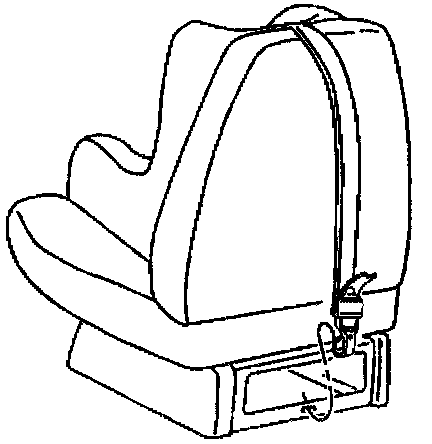

1. Install the child seat tether of the front passenger seat by accessing the top tether anchor and reaching over the back of the seat.
2. Clip the top tether hook onto the anchor.

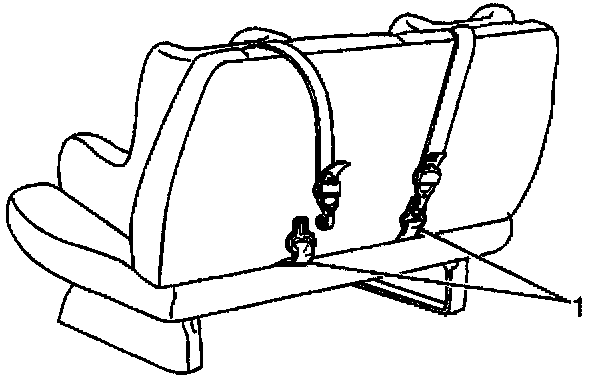

3. Install the child seat tether of the rear passenger seat by accessing the top tether anchor and reaching over the back of the seat.

IMPORTANT: Each anchor accommodates one child seat only. Each 3-passenger bench will accommodate a maximum of two child seats.

4. Clip the top tether hook into the right hand anchor (1) for the right hand position (right side shown installed), the left hand anchor for the left hand position, or either anchor for the center position.
