Inflator Module Handling, Shipping, and Scrapping

TOOLS REQUIRED
^ J 38826 SIR Deployment Harness An appropriate pigtail adapter
^ J 39401-B SIR Deployment Fixture
^ J 38826 SIR Deployment Harness
^ An appropriate pigtail adapter

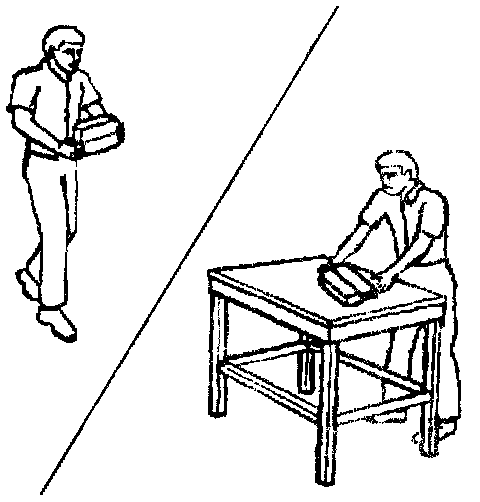

CAUTION: When you are carrying an undeployed inflator module:
^ Do not carry the Inflator module by the wires or connector on the inflator module
^ Make sure the bag opening points away from you

When you are storing an undeployed inflator module, make sure the bag opening points away from the surface on which the inflator module rests. When you are storing a steering column, do not rest the column with the bag opening facing down and the column vertical. Provide free space for the air bag to expand in case of an accidental deployment. Otherwise, personal injury may result.

LIVE (UNDEPLOYED) INFLATOR MODULE
Take special care when handling or storing a live (undeployed) inflator module. An air bag deployment produces rapid gas generation. This may cause the inflator module, or an object in front of the inflator module, to jettison through the air in the event of an unlikely deployment.

SHIPPING PROCEDURES
Refer to the latest service bulletins for proper SIR inflator module shipping procedures.

SCRAPPING PROCEDURE
During the course of a vehicle's useful life, certain situations may arise which will necessitate the disposal of a live (undeployed) inflator module. The following information covers the proper procedures for the disposing of a live inflator module. Deploy the inflator module before disposal. Do not dispose of the module through normal disposal channels.

CAUTION: In order to prevent accidental deployment of the air bag which could cause personal injury, do not dispose of an undeployed inflator module as normal shop waste. The undeployed Inflator module contains substances that could cause severe illness or personal injury if the sealed container is damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed inflator module. Failure to dispose of an inflator module as instructed may be a violation of federal, state, province, or local laws.

Do not deploy an air bag in the following situations:
^ After replacement of an inflator module under warranty. The module may need to be returned undeployed to the original manufacturer of inflator module. Refer to the latest service bulletin regarding SIR shipping procedures.
^ If the vehicle is the subject of a Product Liability report related to the SIR system and is subject to a Preliminary Investigation (GM-1241). Do not alter the SIR system in any manner. Refer to the latest service bulletin on SIR shipping procedures.
^ If the vehicle is involved in a campaign affecting the inflator modules. Follow the instructions in the Campaign Service Bulletin for proper SIR handling and shipping procedures.
