Blower Motor Relay: Service and Repair

BLOWER MOTOR RELAY REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE




1. Remove the body side rear trim panel.

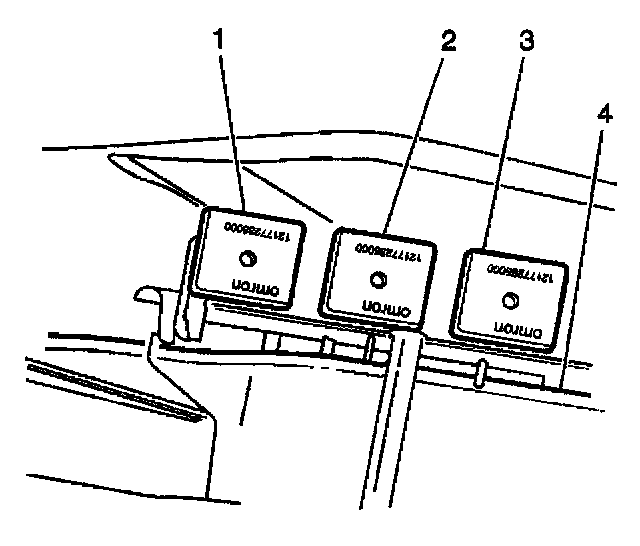

2. Pull upward to remove the relay (1) from the connector.
3. Remove the relay (1) from the vehicle.

INSTALLATION PROCEDURE




1. Install the relay to the vehicle.
2. Push downward to install the relay (1) to the connector.
Make sure the relay is fully seated in the connector.
3. Install the body side rear trim panel.
