Blower Motor Relay: Locations

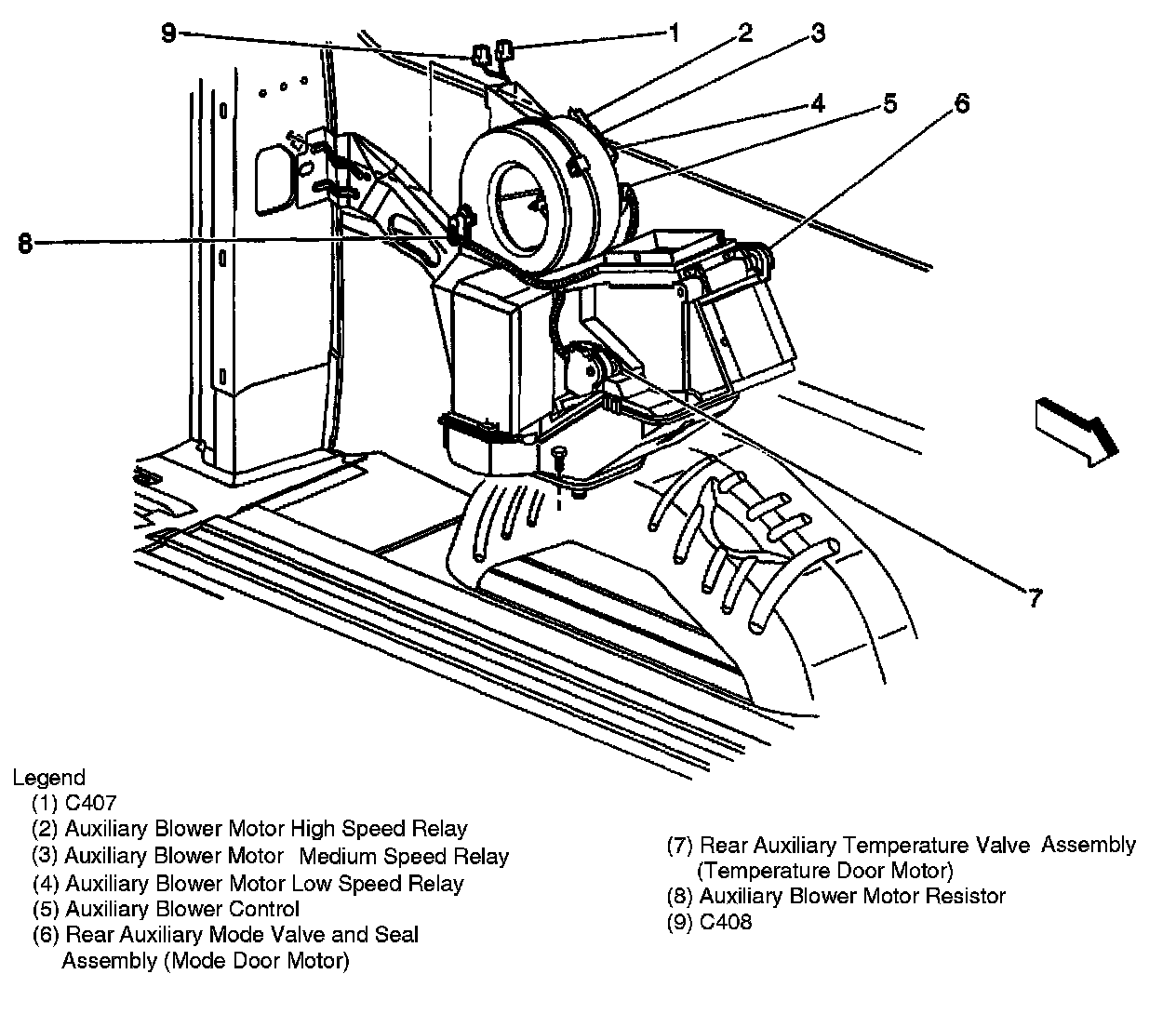

Auxiliary Blower Motor Relay, High LH rear comer of Interior cabin, behind rear wheel house.

Locations View:

Auxiliary Blower Motor Relay, Medium LH rear comer of interior cabin, behind rear wheel house.

Locations View:

Auxiliary Blower Motor Relay, Low LH rear comer of Interior cabin, behind rear wheel house.

Locations View:

Blower Motor Resistor/Relay

Locations View:

Blower Motor Resistor/Relay (Internal to Blower Motor)

Locations View:
