Transmission Solenoid Controls - 4L80-E
Transmission Solenoid Controls - 4L80-E

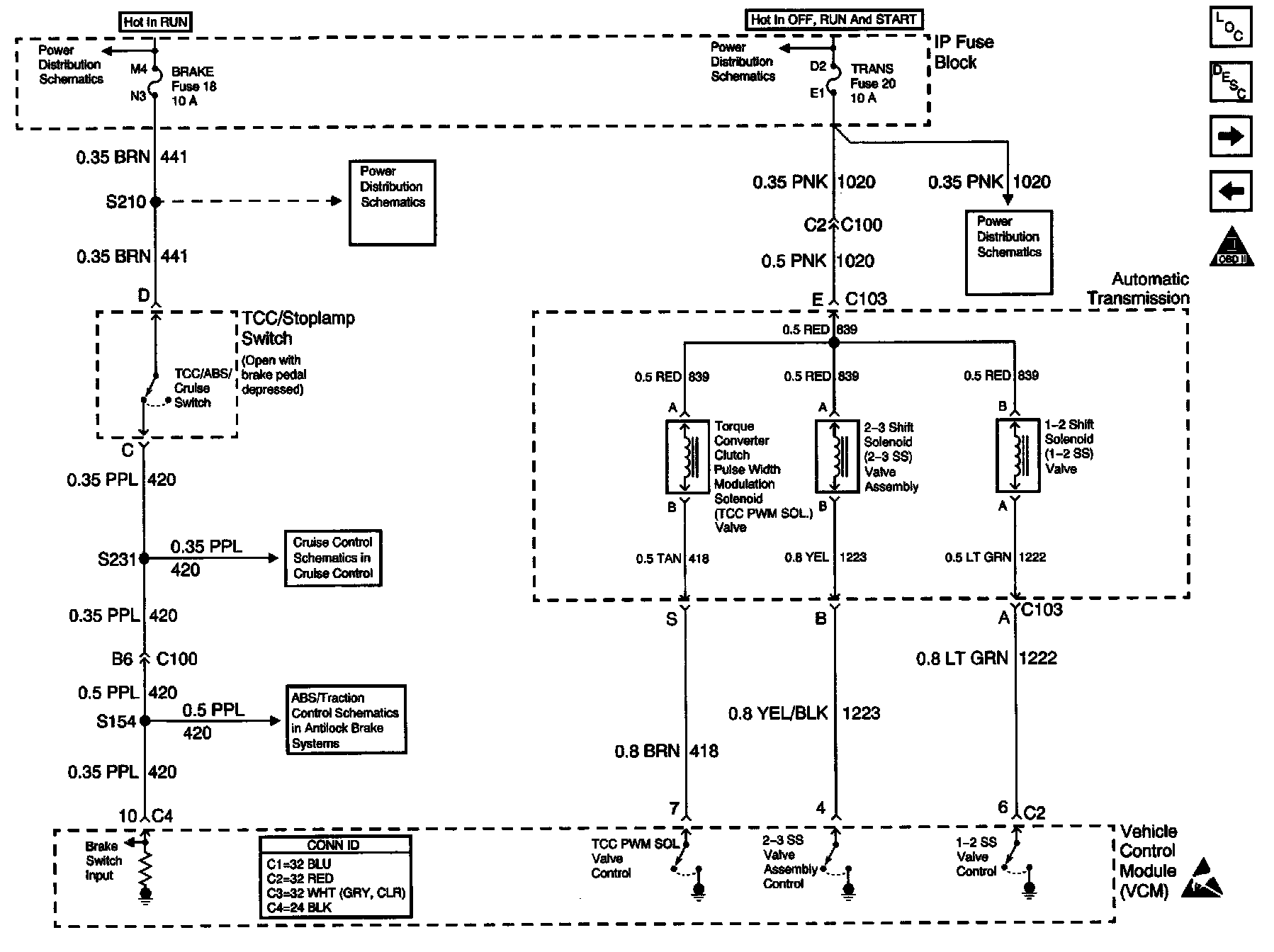

Engine Controls Schematics: Transmission Solenoid Controls:
