Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Vehicle Control Module (VCM)
Vehicle Control Module (VCM)

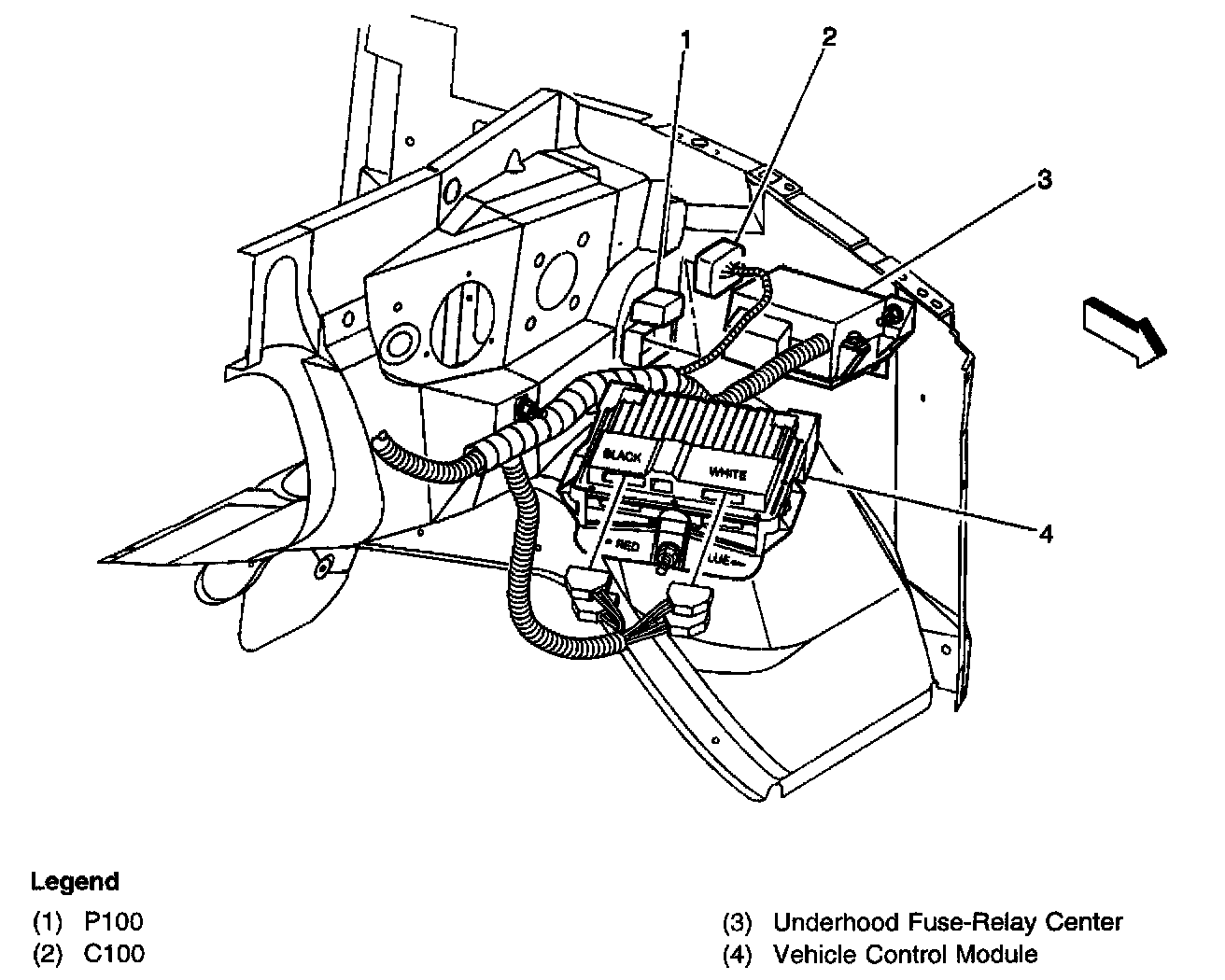

Locations View:

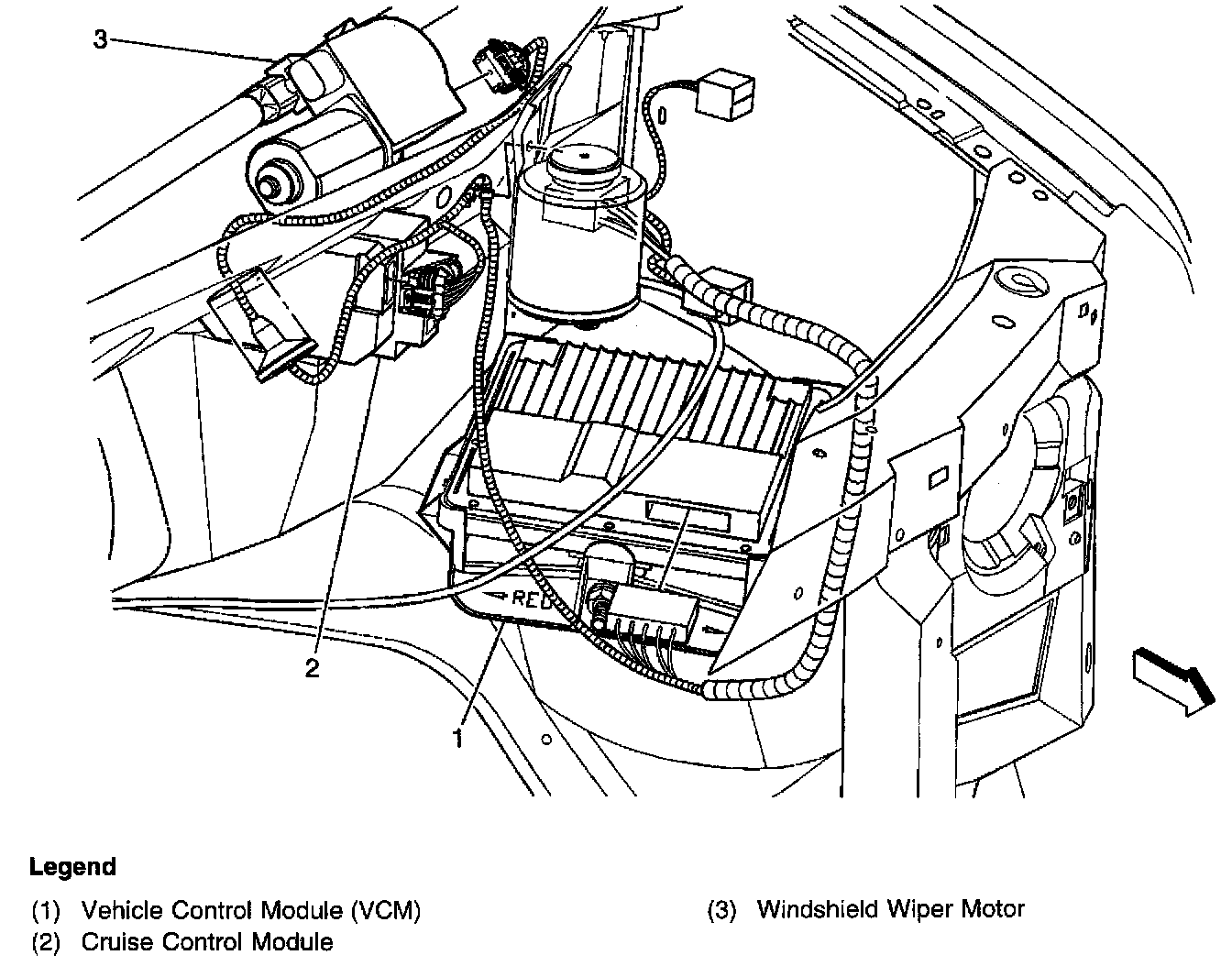

Locations View:
Location View:

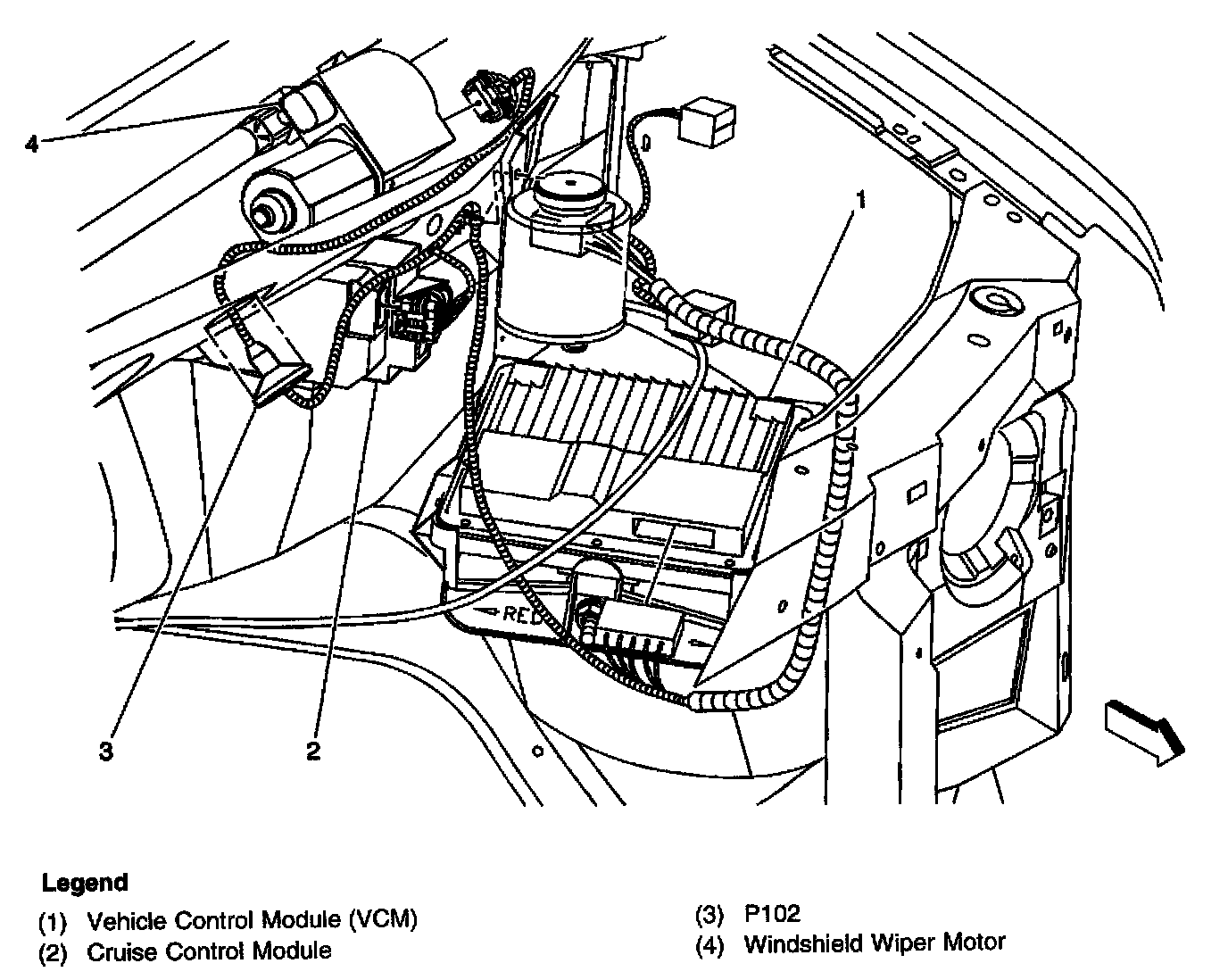

Locations View:

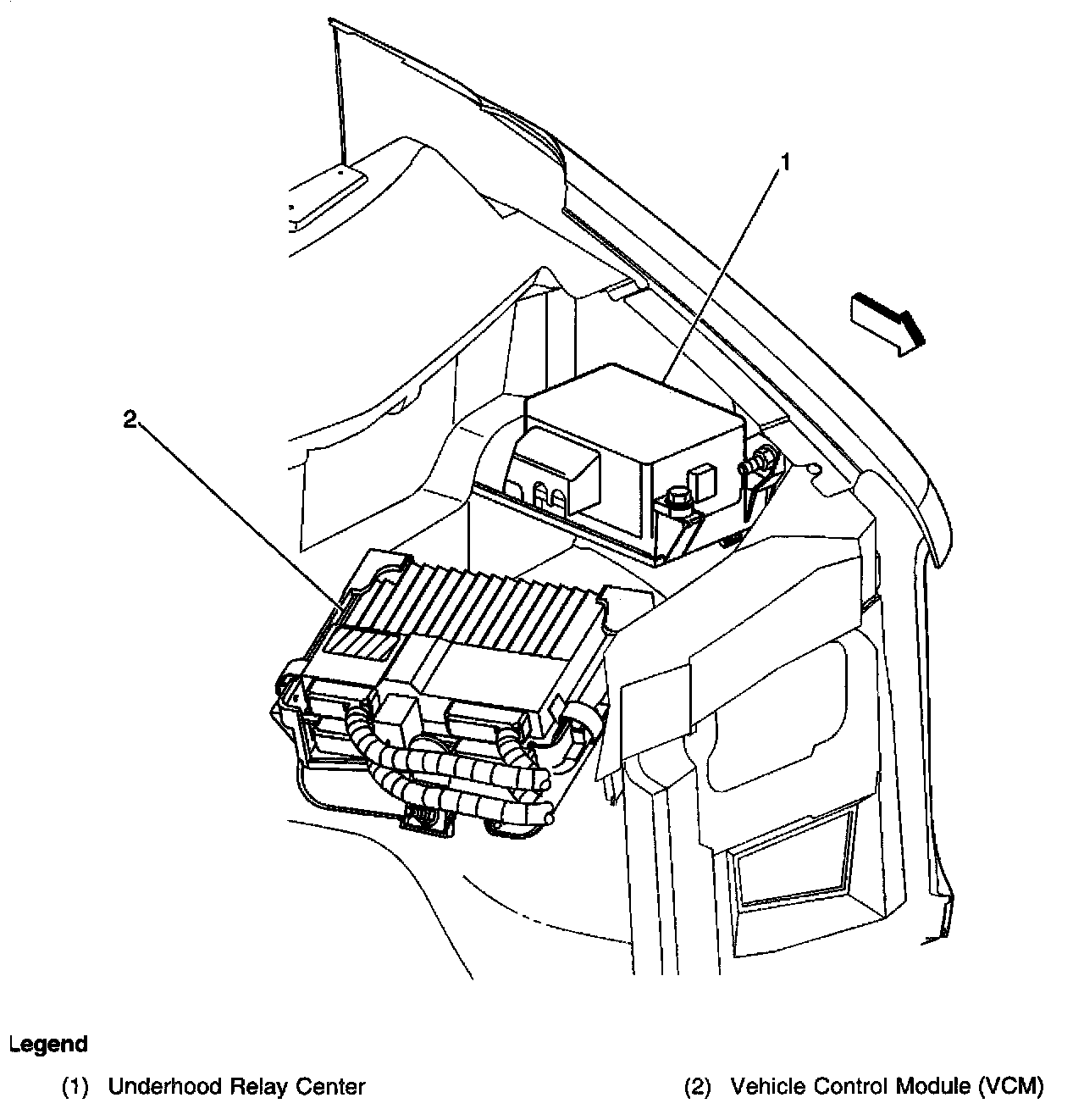

Location Views:
Engine compartment, LH fender
