Throttle Cable/Linkage: Service and Repair

Accelerator Controls Cable Replacement

REMOVAL PROCEDURE




1. Remove the engine cover.
2. Remove the air cleaner outlet duct.

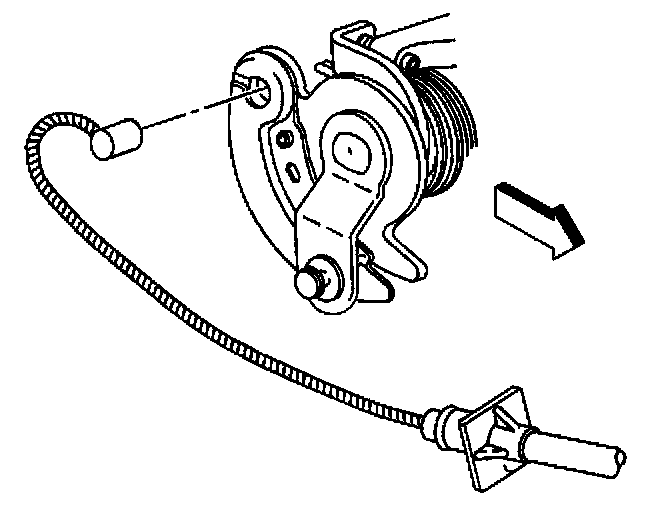

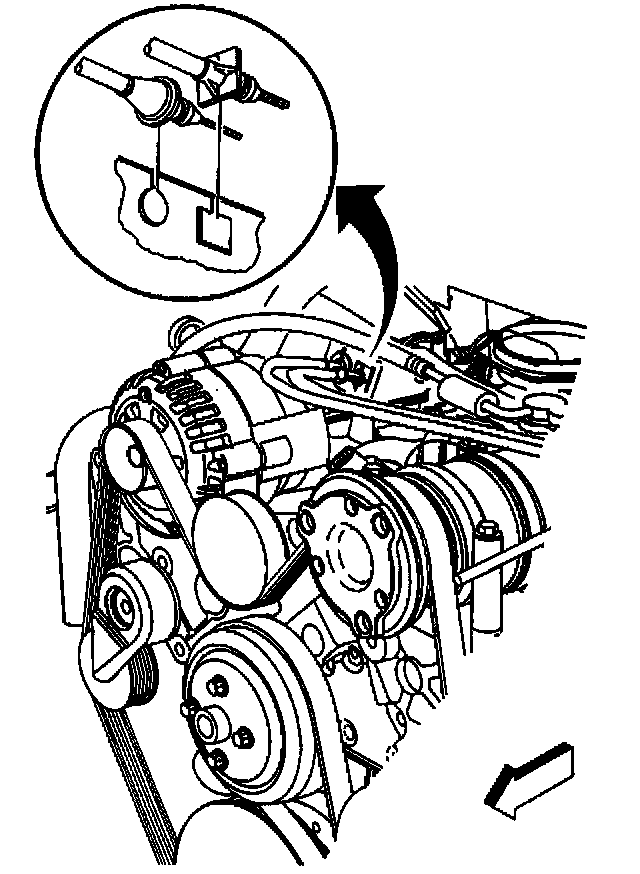

3. Remove the accelerator cable from the throttle lever.




4. Remove the accelerator cable from the engine cable bracket.

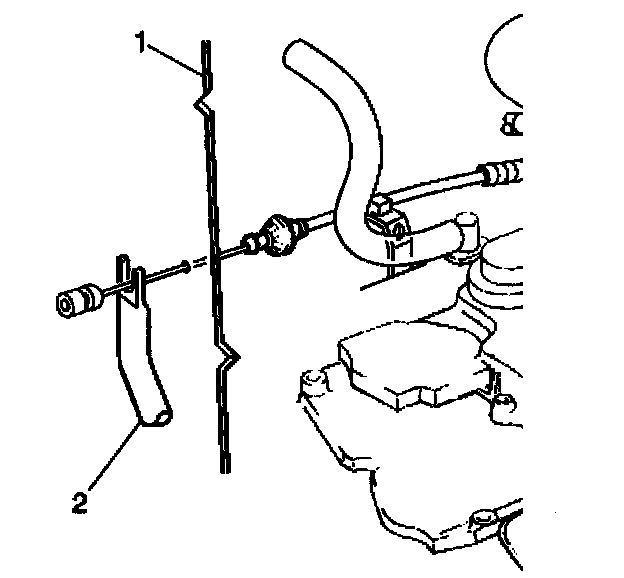

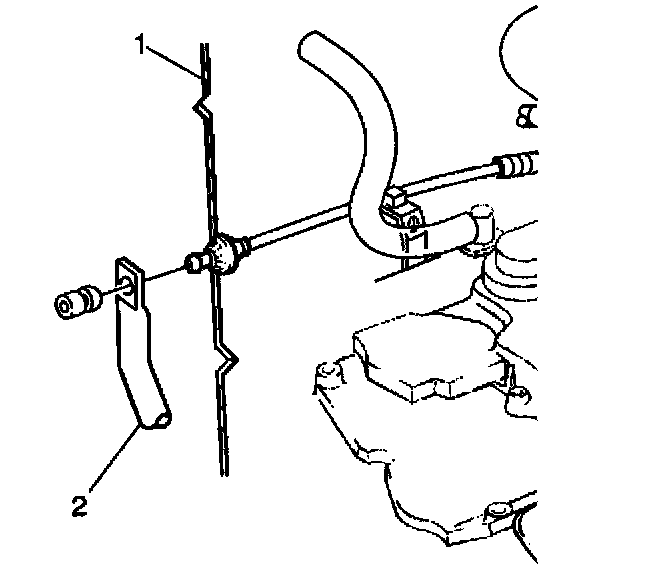

5. Remove the accelerator cable from the accelerator pedal (2).




6. Remove the accelerator cable from the dash panel (1).

INSTALLATION PROCEDURE




1. Install the accelerator cable to the dash panel (1).




2. Install the accelerator cable to the accelerator pedal (2).




3. Install the accelerator cable to the engine cable bracket.




4. Install the accelerator cable to the throttle lever.
5. Install the air cleaner outlet duct.
6. Install the engine cover.
