Passenger/Cargo Van

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Clean all the fuel pipe and hose connections and the surrounding areas before disconnecting in order to avoid contamination of the fuel system.
3. Remove the fuel tiller cap.
4. Drain the fuel below the level of the fuel tank fill hose. Refer to Fuel Tank Draining Procedure.
5. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in Vehicle Lifting.

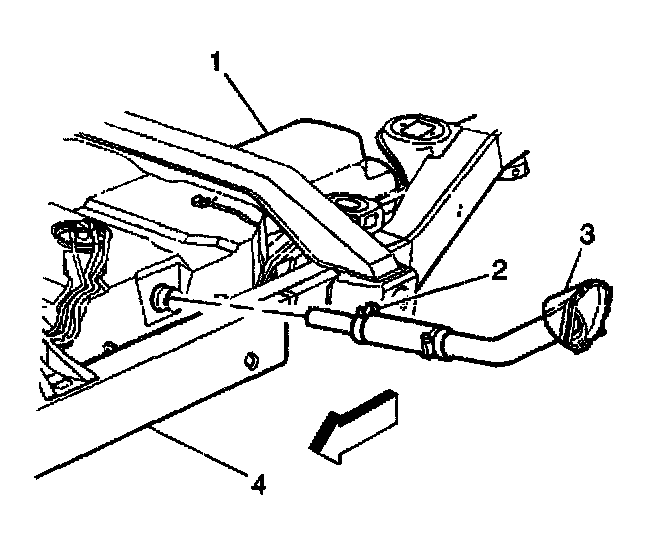

6. Loosen the fuel fill hose clamps (2,5).
7. Remove the fuel fill hose (6).
8. Cap the open end of the fuel tank.

INSTALLATION PROCEDURE
1. Uncap the fuel tank.
2. Install the fuel fill hose (6).

Tighten
Tighten the fuel fill hose clamps (2,5) to 2.75 N.m (24 lb in).

3. Lower the vehicle.
4. Refill the fuel tank.
5. Install the fuel filler cap.
6. Connect the negative battery cable.
