Commercial/RV/Cutaway Van

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
3. Raise the vehicle.

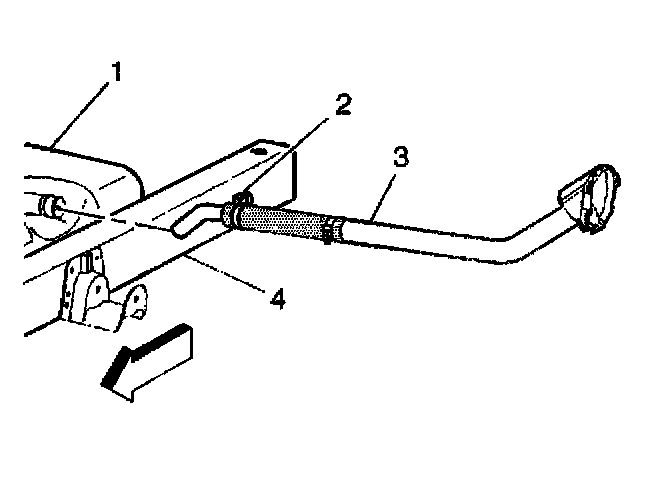

4. Wipe the vent hose connection at the fuel tank (1), then disconnect the fuel filler lube and the clamp (2).
5. Wipe the fuel filler tube connection at the fuel tank, then disconnect the fuel filler tube and the clamp.
5. Remove the fuel tube attaching screws (2) and the fuel filler tube.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: You must properly position and align the fuel tank filler neck clamps, or the filler neck may become disconnected from the fuel tank

1. Install the fuel filler tube and install the fuel filler tube attaching screws (2).

Tighten
Tighten the attaching screws to 2.75 N.m (24.3 lb in).

2. Connect the fuel filler vent hose and the clamp.
3. Connect the fuel filler tube hose and the clamp (3).
4. Reinstall the fuel tank filler cap.
5. Reconnect the negative battery cable.
6. Check for leaks.
