Fuel Meter Body Assembly

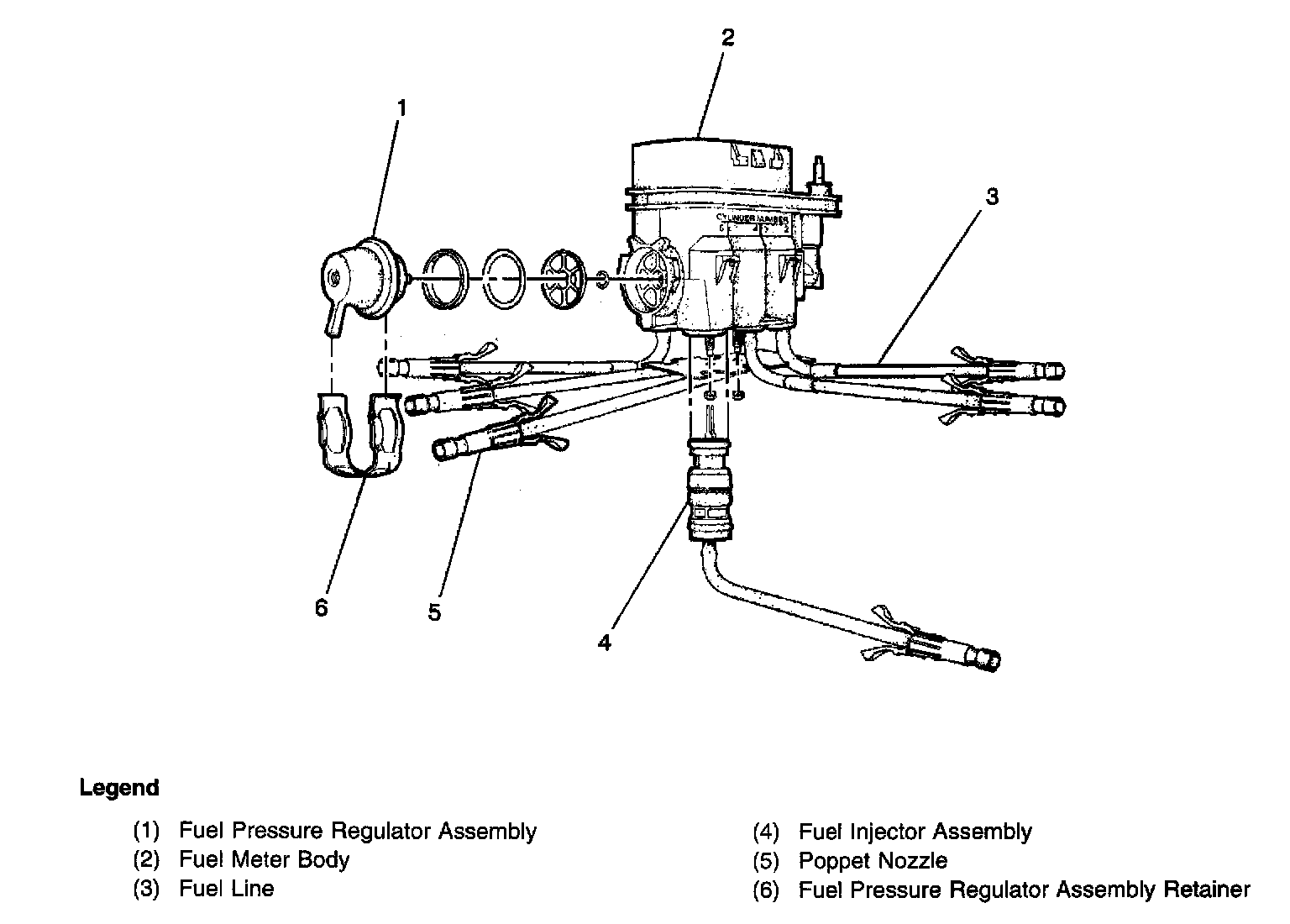

Schematic:

The fuel meter body assembly is mounted to the lower portion of the intake manifold. The assembly performs the following functions:
^ Allows for an even distribution of fuel to the injectors
^ Integrates the fuel pressure regulator into the fuel metering system
