Accelerator Pedal: Service and Repair

REMOVAL PROCEDURE

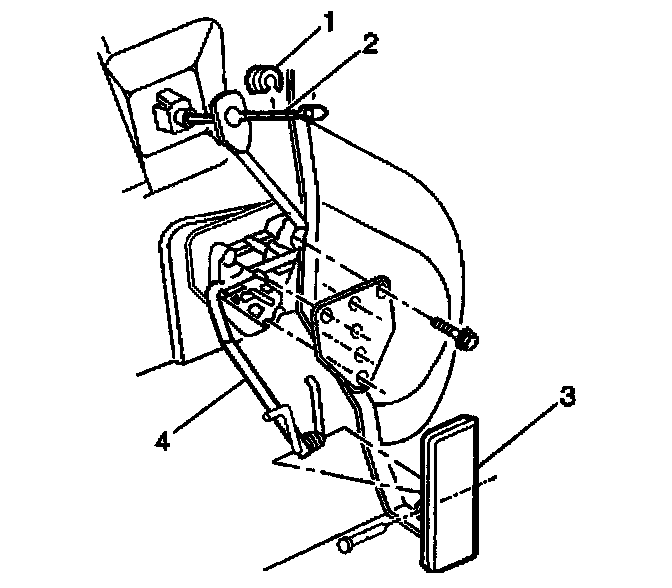

1. Lift upward or the accelerator pedal (3) to relieve tension on the cable (2).
2. Remove the retainer from the accelerator pedal lever hole.
3. Remove the cable from the slot in the accelerator pedal lever.
4. Remove the accelerator pedal mounting bolts.
5. Remove the accelerator pedal.

INSTALLATION PROCEDURE

IMPORTANT: The accelerator cable is not to be kinked or damaged in any way during installation.

1. Ensure that the mounting surface between the accelerator pedal assembly and the dash panel is free of insulation. The carpet and padding in the pedal and tunnel area must be positioned to lay flat and be free of wrinkles and bunches. Wire, hoses, cables, and other flexible components should not be within 13 mm (0.52 in) of the cable or lever, at any point in their travel.
2. Install the accelerator pedal to the dash panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the accelerator pedal mounting bolts.

Tighten
Tighten the bolts to 5 N.m (44 lb in).

4. Lift upward on the accelerator pedal (3).
5. Insert the cable (2) through the accelerator pedal lever slot.
6. Press the retainer into the lever hole until fully seated.

IMPORTANT: The pedal must operate freely without binding through the full range of pedal movement.

7. Check the pedal for free movement by pressing down on the pedal.
