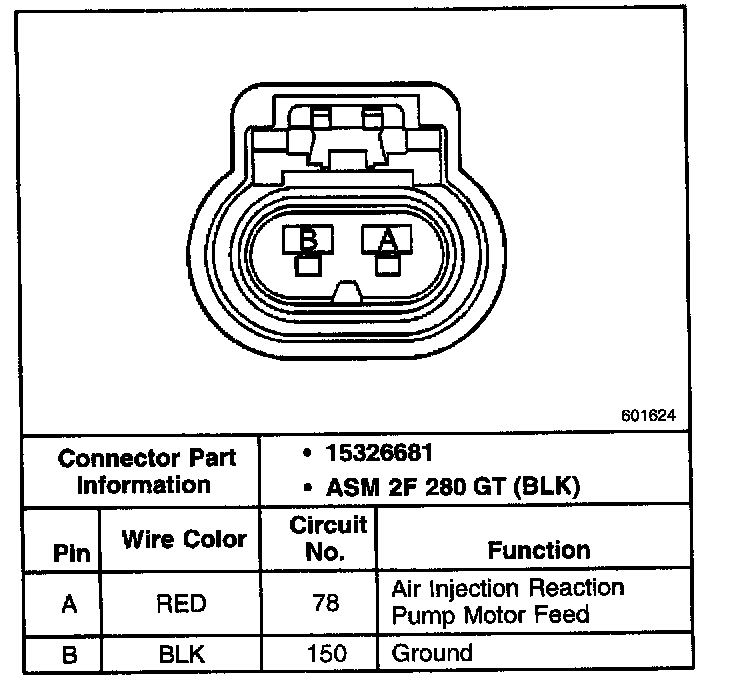

Air Injection Reaction (AIR) Pump Connector
Air Injection Reaction (AIR) Pump Connector
Air Injection Reaction (AIR) Pump Connector:
