Oxygen Sensor
>>
Locations
>>

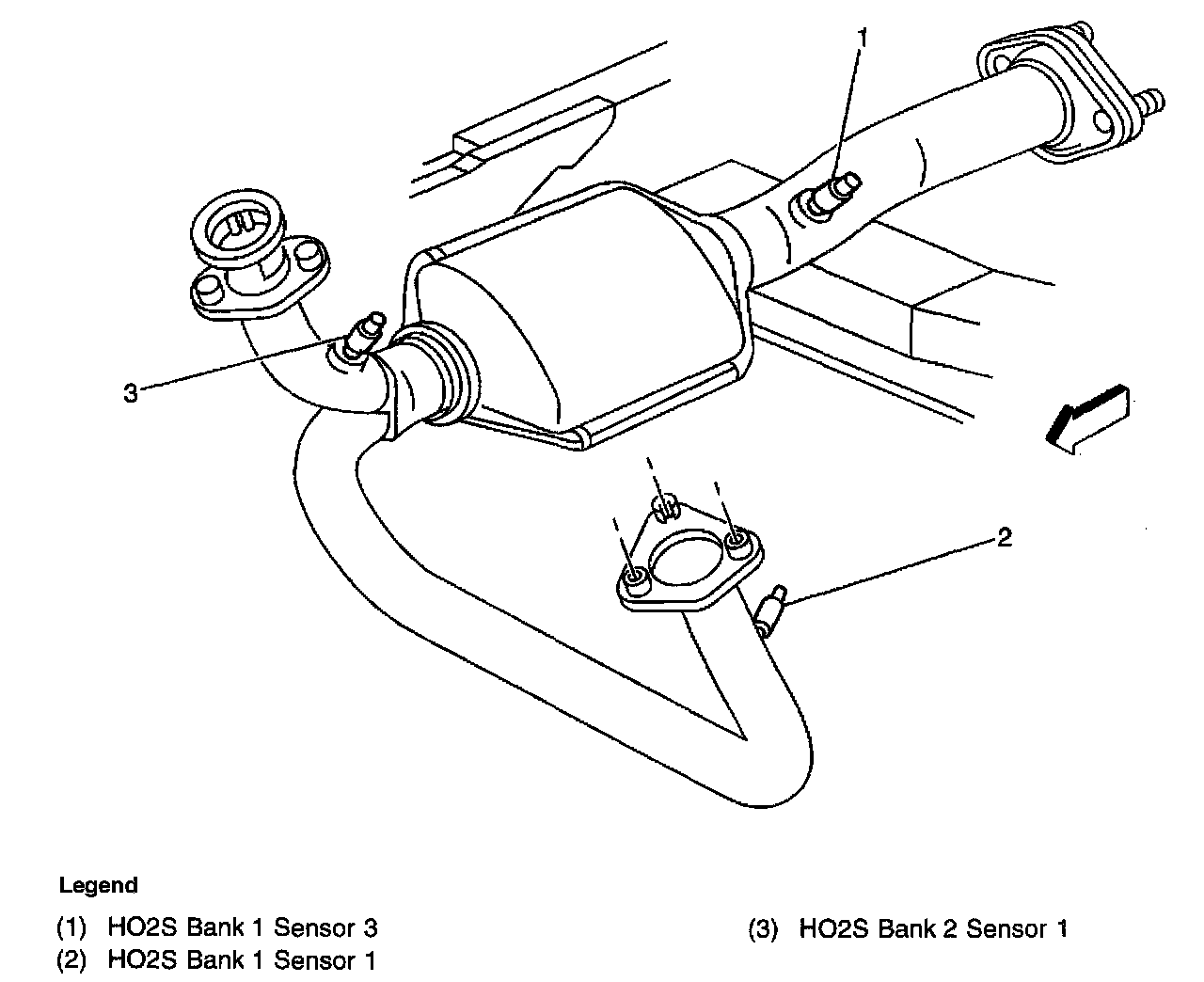

Heated Oxygen Sensor, Bank 1 Sensor 3
Heated Oxygen Sensor, Bank 1 Sensor 3
Locations View:
In exhaust pipe, in back of catalytic converter
