Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

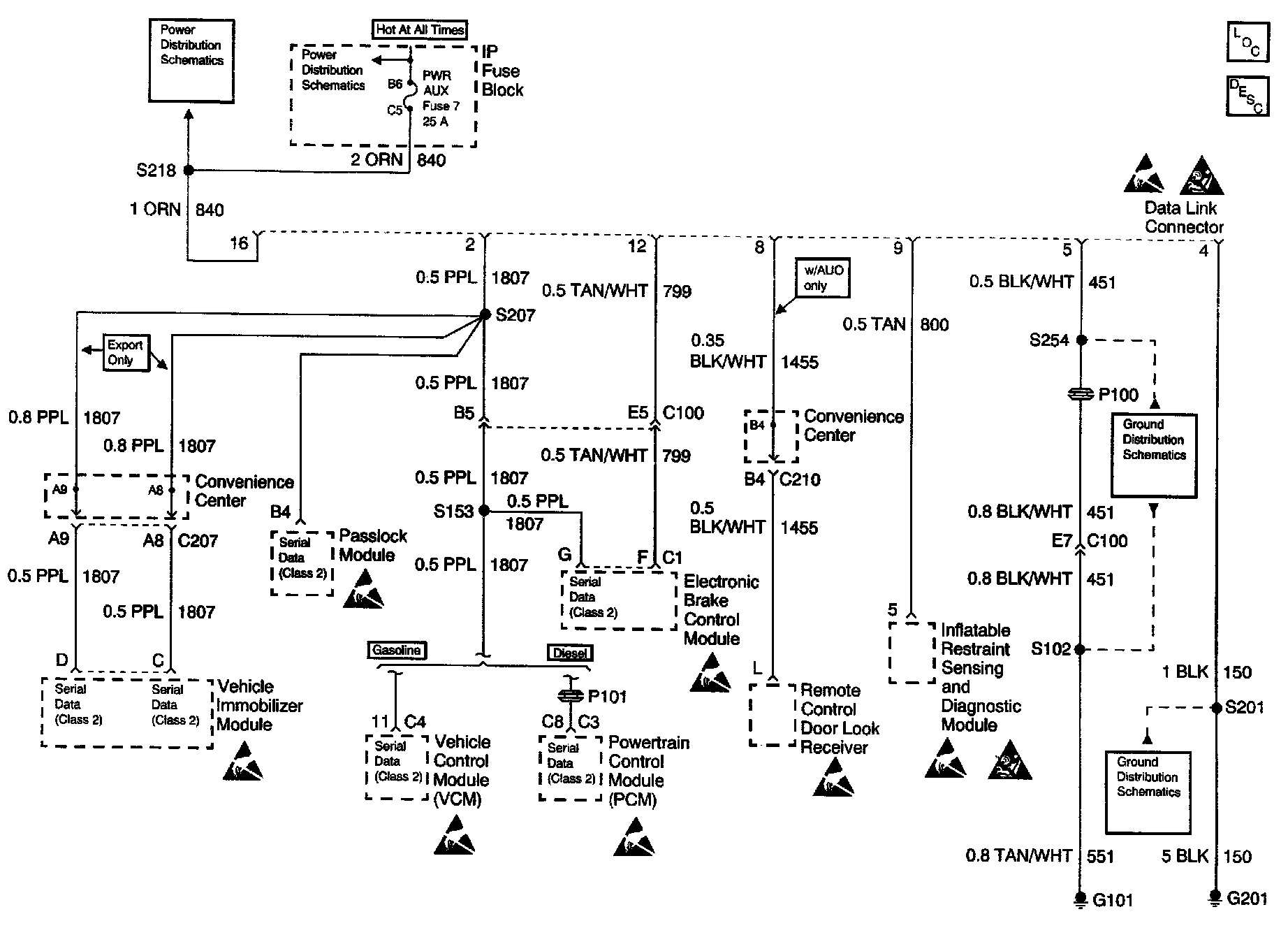

Data Link Connector (DLC) Schematics: Fuse Block, Theft Deterrent, VCM/PCM, Remote Control Door Lock Receiver, SDM, G101, And G201:
