C200

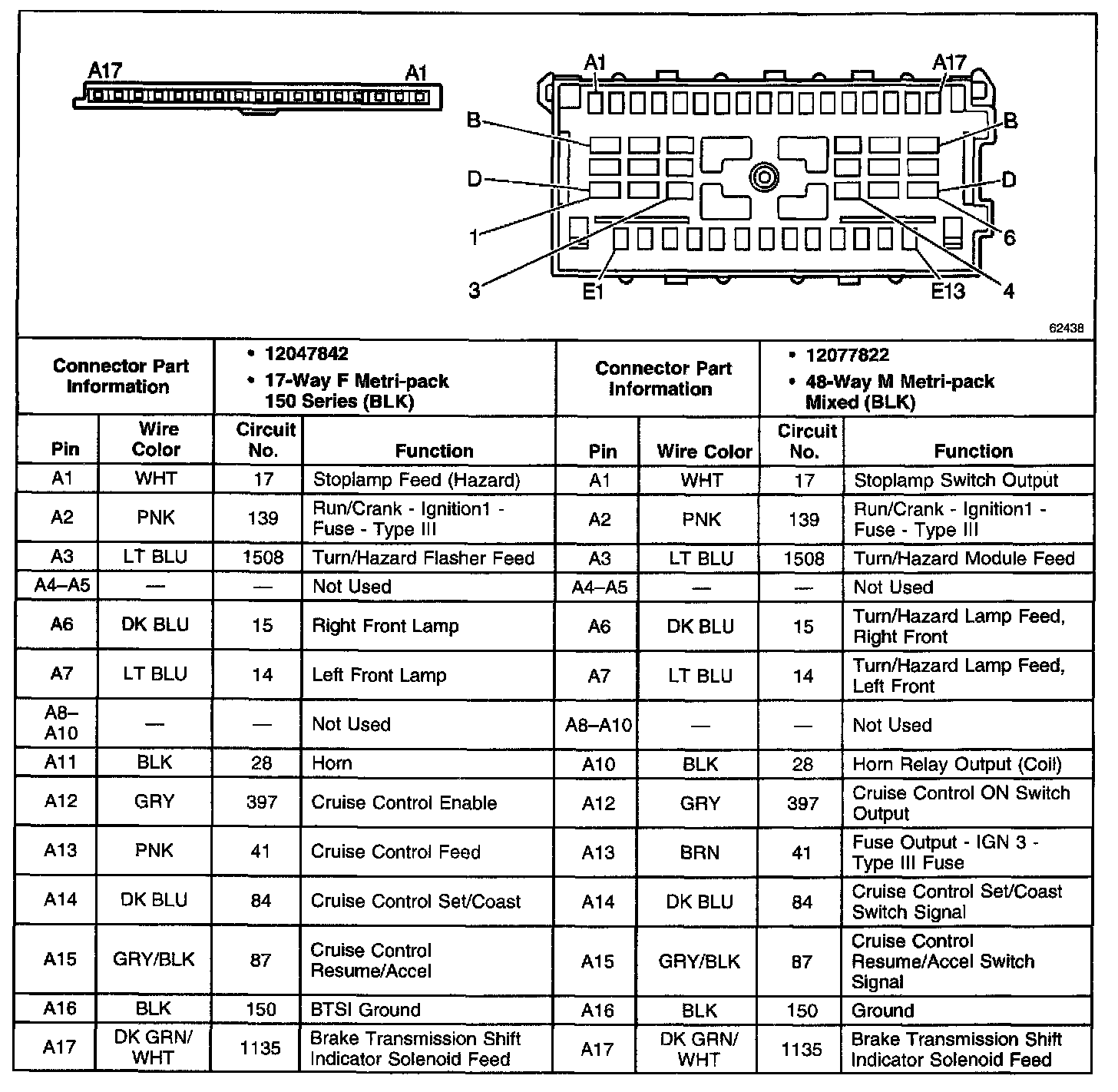

In-Line Harness Connector C200:

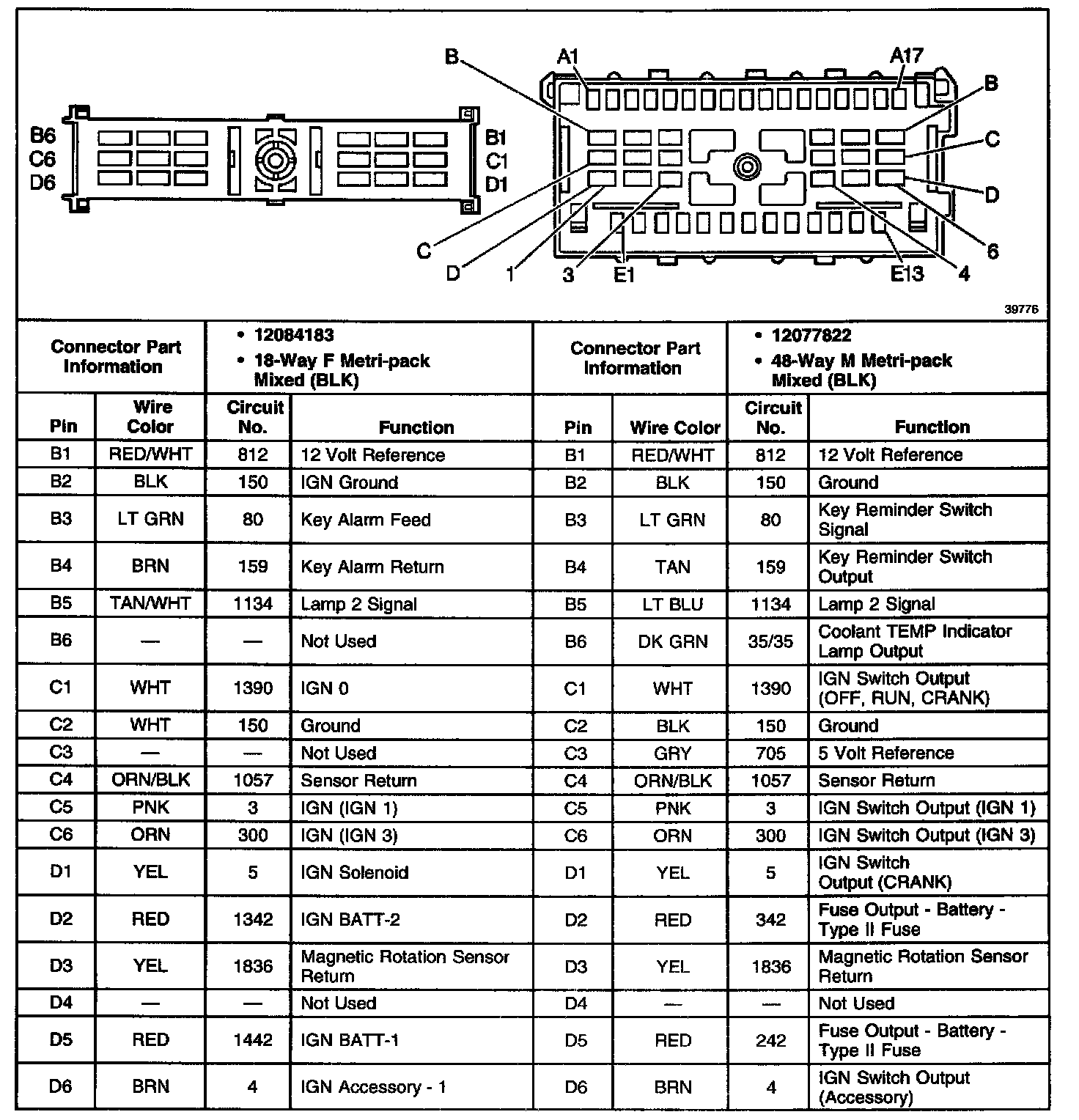

In-Line Harness Connector C200:

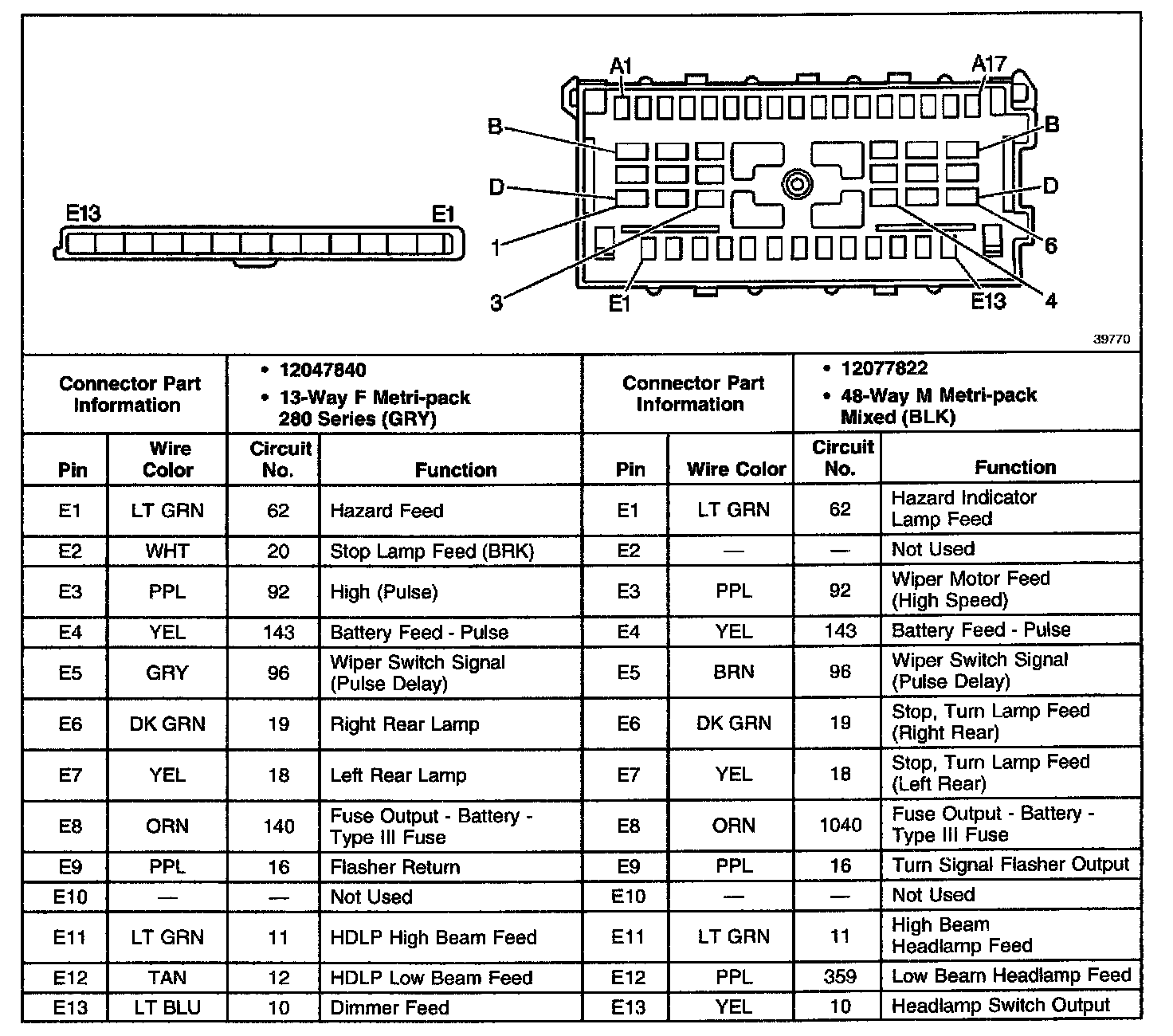

In-Line Harness Connector C200:
