Turn Signal Lamps and Indicators Inop - One Side
Turn Signal Lamps and Indicators Inop - One Side

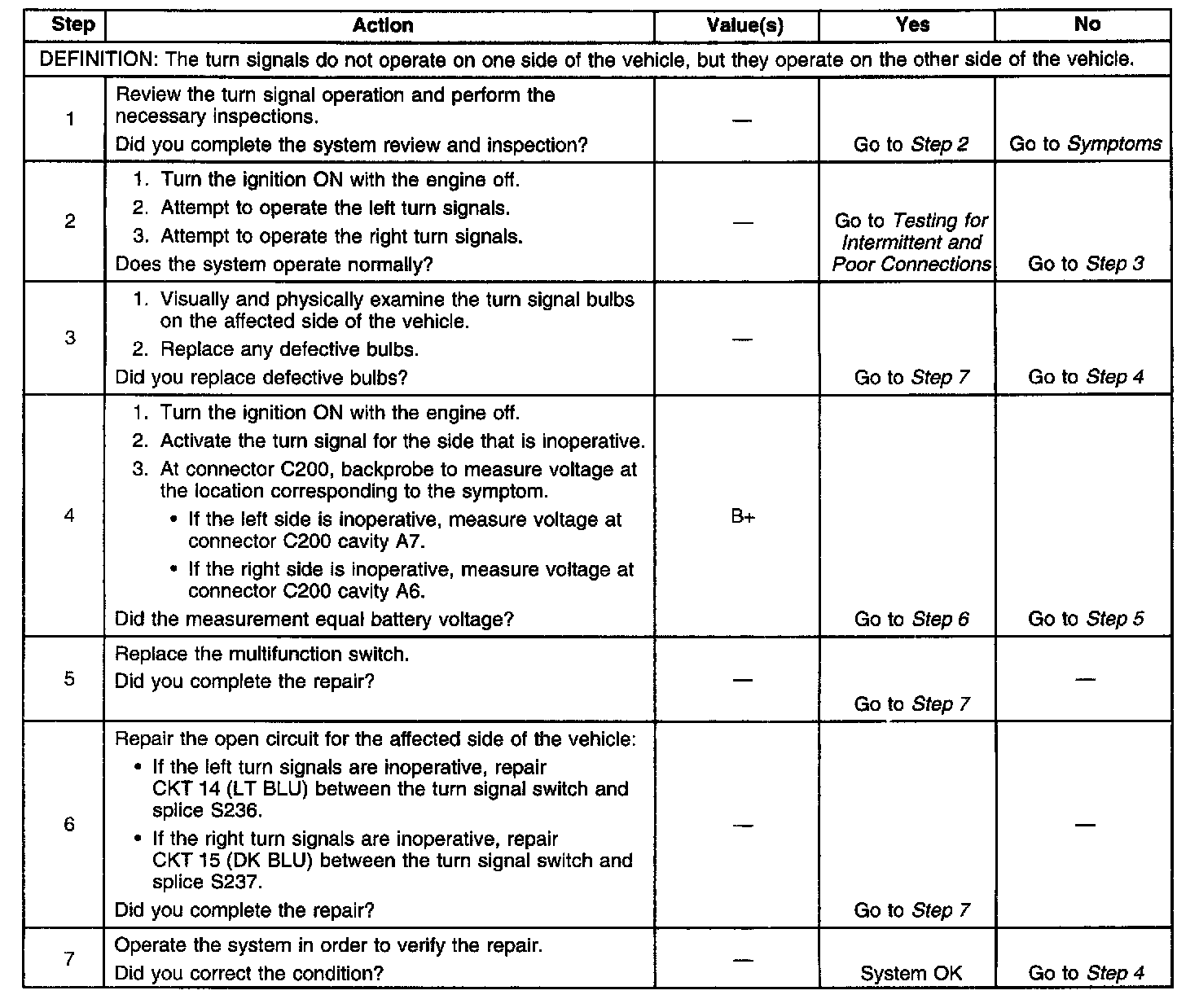

Diagnostic Chart:
