Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlight Leveling Inop - Actuator Switch Illum

Headlight Leveling Inop - Actuator Switch Illum

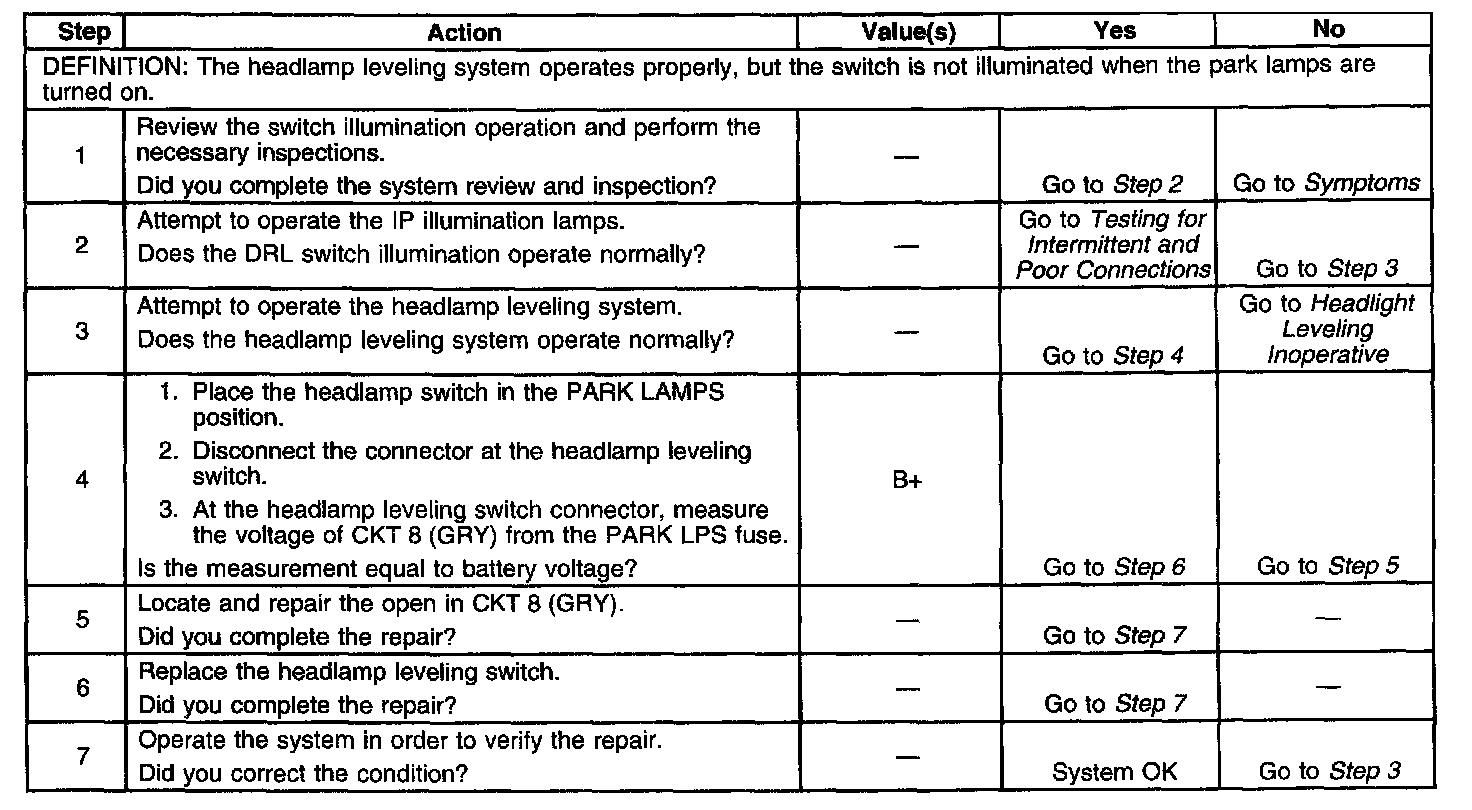

Diagnostic Chart:
