Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps, Daytime Running Lamps (DRL) On With Park Brake Applied

Headlamps, Daytime Running Lamps (DRL) On With Park Brake Applied

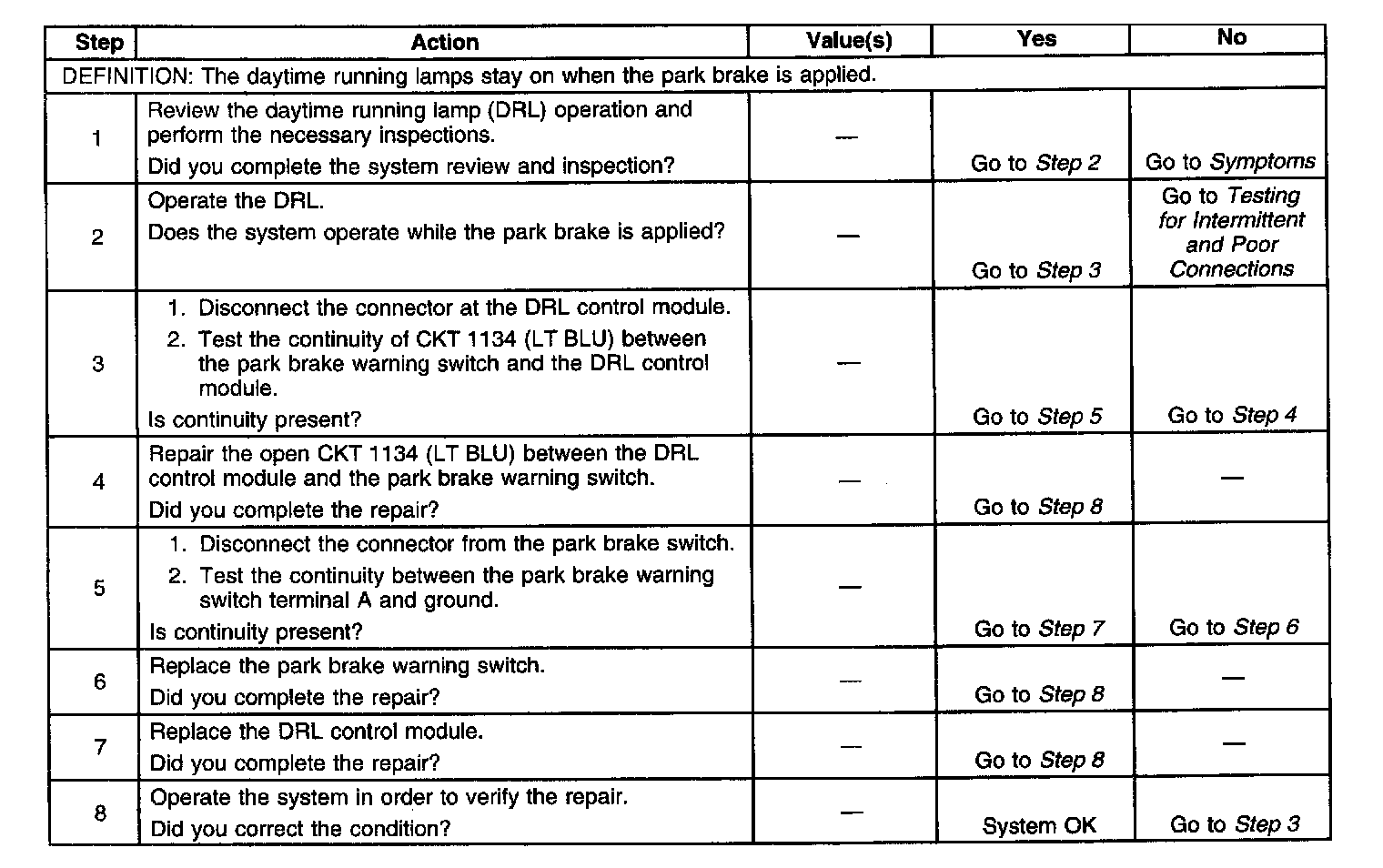

Diagnostic Chart:
