Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Running Lamps (DRL) - Inoperative, HDLP SW Operates Normally - Export

Daytime Running Lamps (DRL) - Inoperative, HDLP SW Operates Normally - Export

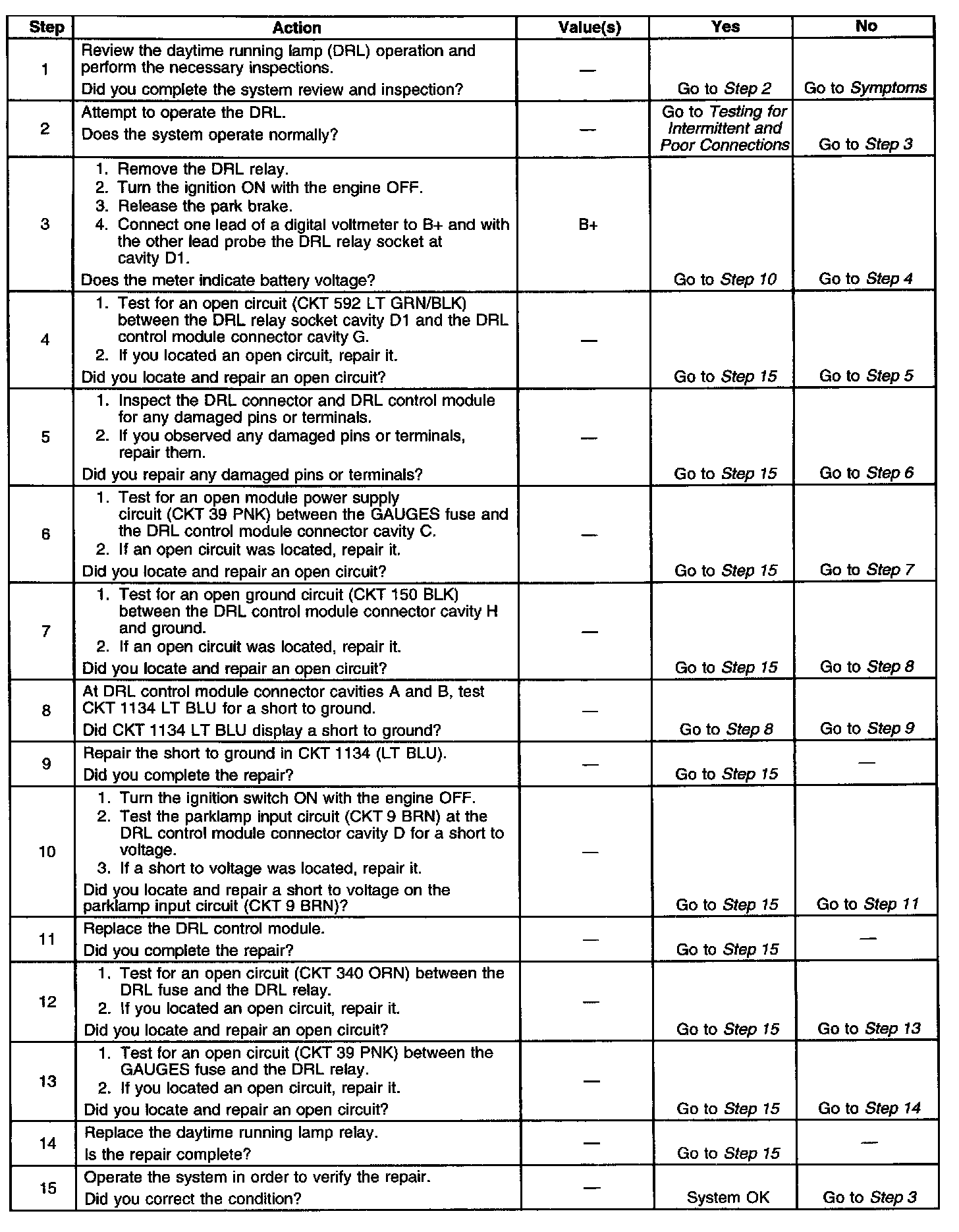

Diagnostic Chart:
