FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Backup Lamp Inoperative - One Lamp (Domestic)
Backup Lamp Inoperative - One Lamp (Domestic)

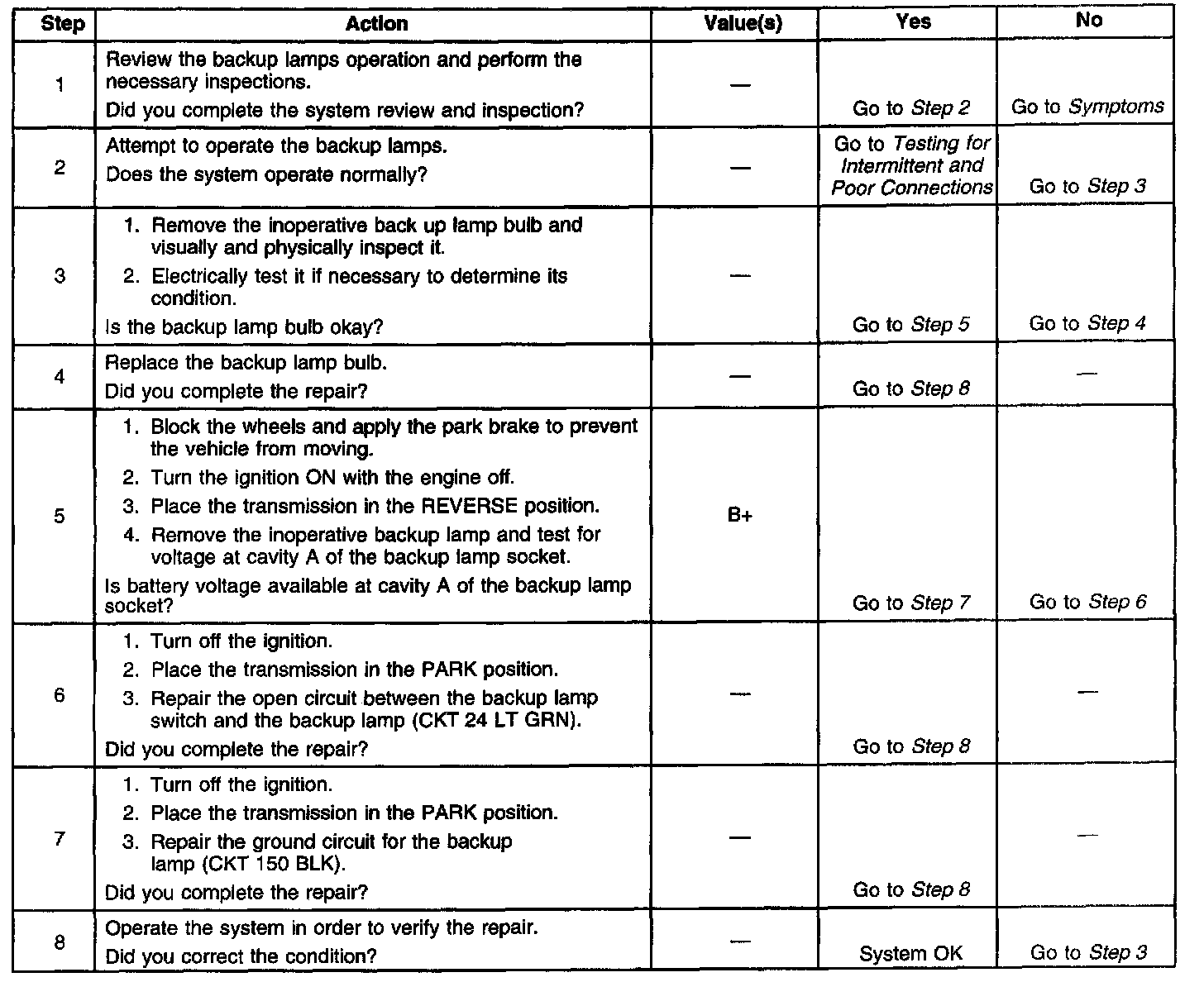

Diagnostic Chart:
