Brake Light Switch: Locations

Locations View:




Under brake pedal

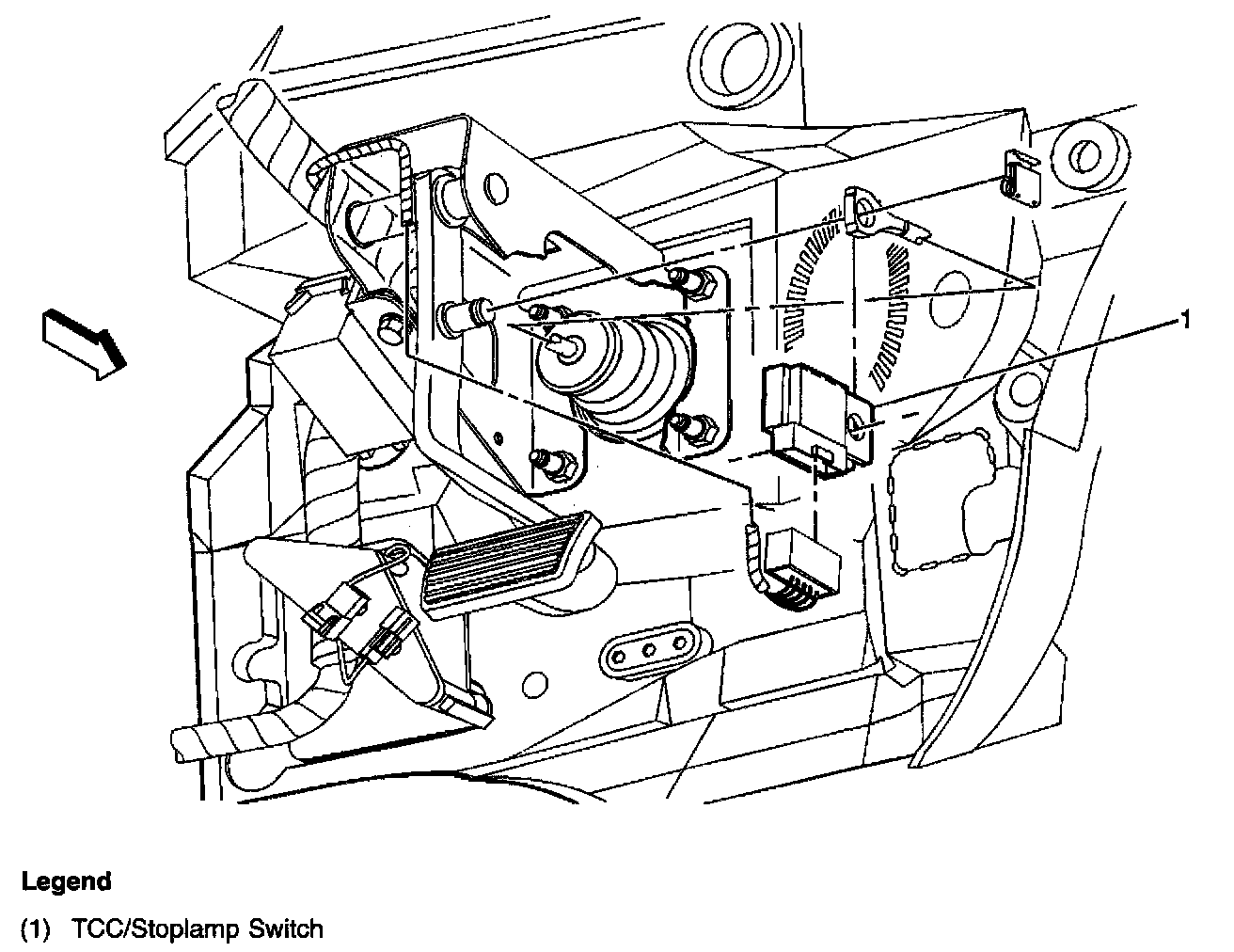

Below the center of the IP, near the brake pedal lever

Below the center of the IP, near the brake pedal
