Stepwell Lamp Replacement

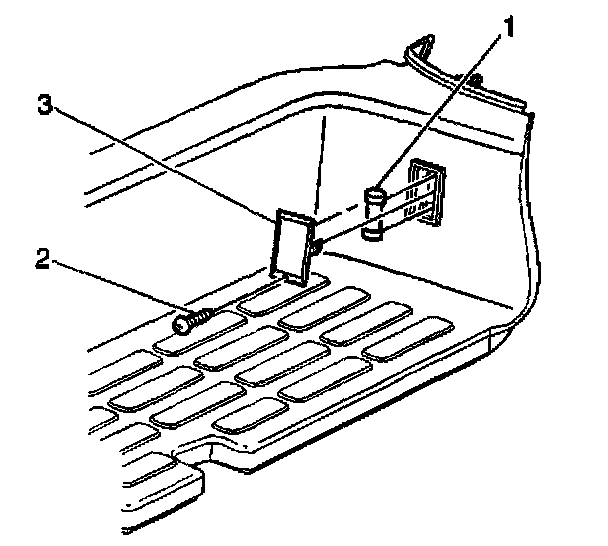

REMOVAL PROCEDURE
1. Remove the screw (2) from the stepwell lamp lens.
2. Remove the stepwell lamp lens (3) from the stepwell mat.
3. Remove the bulb (1) from the socket.

INSTALLATION PROCEDURE
1. Connect the bulb (1) into the socket.
2. install the stepwell lamp lens (3) to the stepwell mat.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the stepwell lamp lens retaining screw (2).

Tighten
Tighten the screws to 1.5 N.m (13 lb in).
