Marker Lamp Replacement - Side (RPO T90)

REMOVAL PROCEDURE

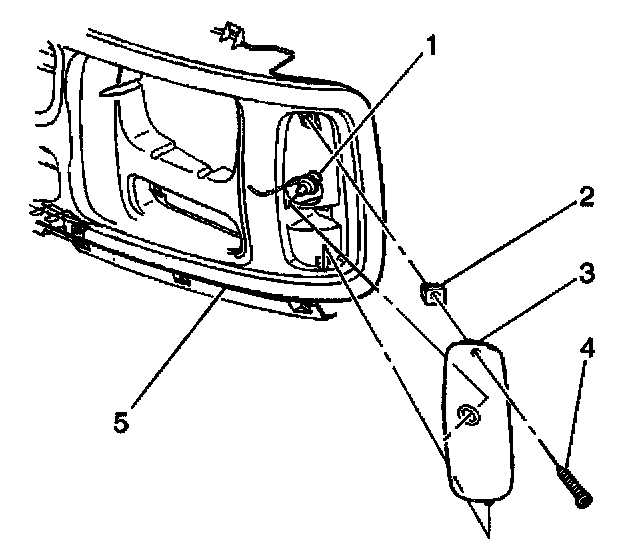

1. Remove the screw (4) that retains the front side marker lamp to the radiator grille.
2. Lift the side marker lamp (3) up and out in order to disengage the tab.
3. Disconnect the bulb socket (1) from the side marker lamp.
4. Remove the bulb (1) from the socket.

INSTALLATION PROCEDURE
1. Connect the bulb (1) into the socket.
2. Connect the bulb socket (1) into the side marker lamp.
3. Install the side marker lamp (3) to the radiator grille (5).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the side marker lamp retaining screw (4).

Tighten
Tighten the screws to 1.5 N.m (13 lb in).
