Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lights >> Exterior Lights Schematics (Export) >> Turn/Hazard Lamp Flasher

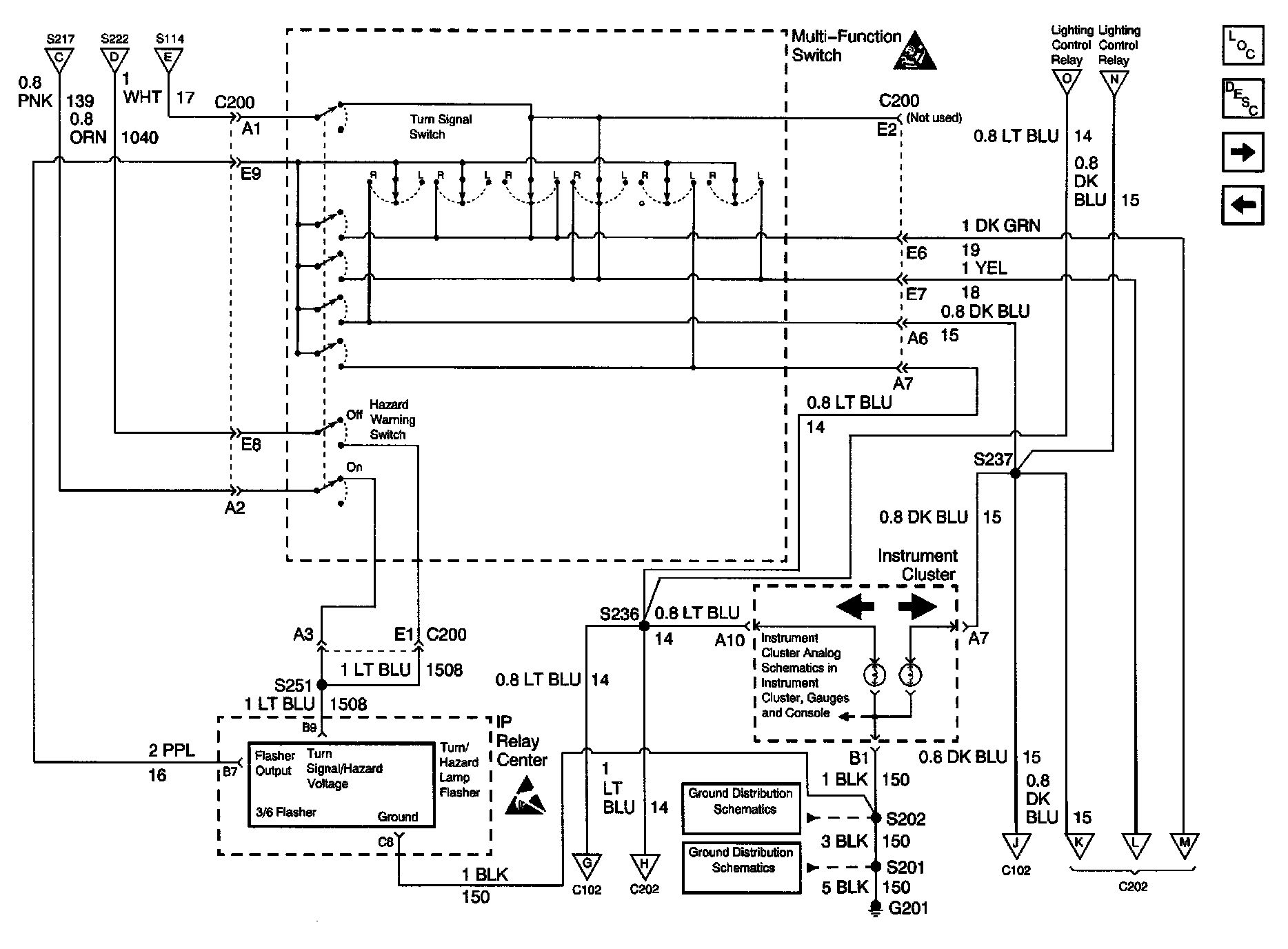

Turn/Hazard Lamp Flasher

Exterior Lights Schematics (Export): Turn/Hazard Lamp Flasher:
