Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Exterior Lights
>>
Exterior Lights Schematics (Export)
>>
PARK LPS, TURN B/U, HAZARD, and STOP Fuses
PARK LPS, TURN B/U, HAZARD, and STOP Fuses

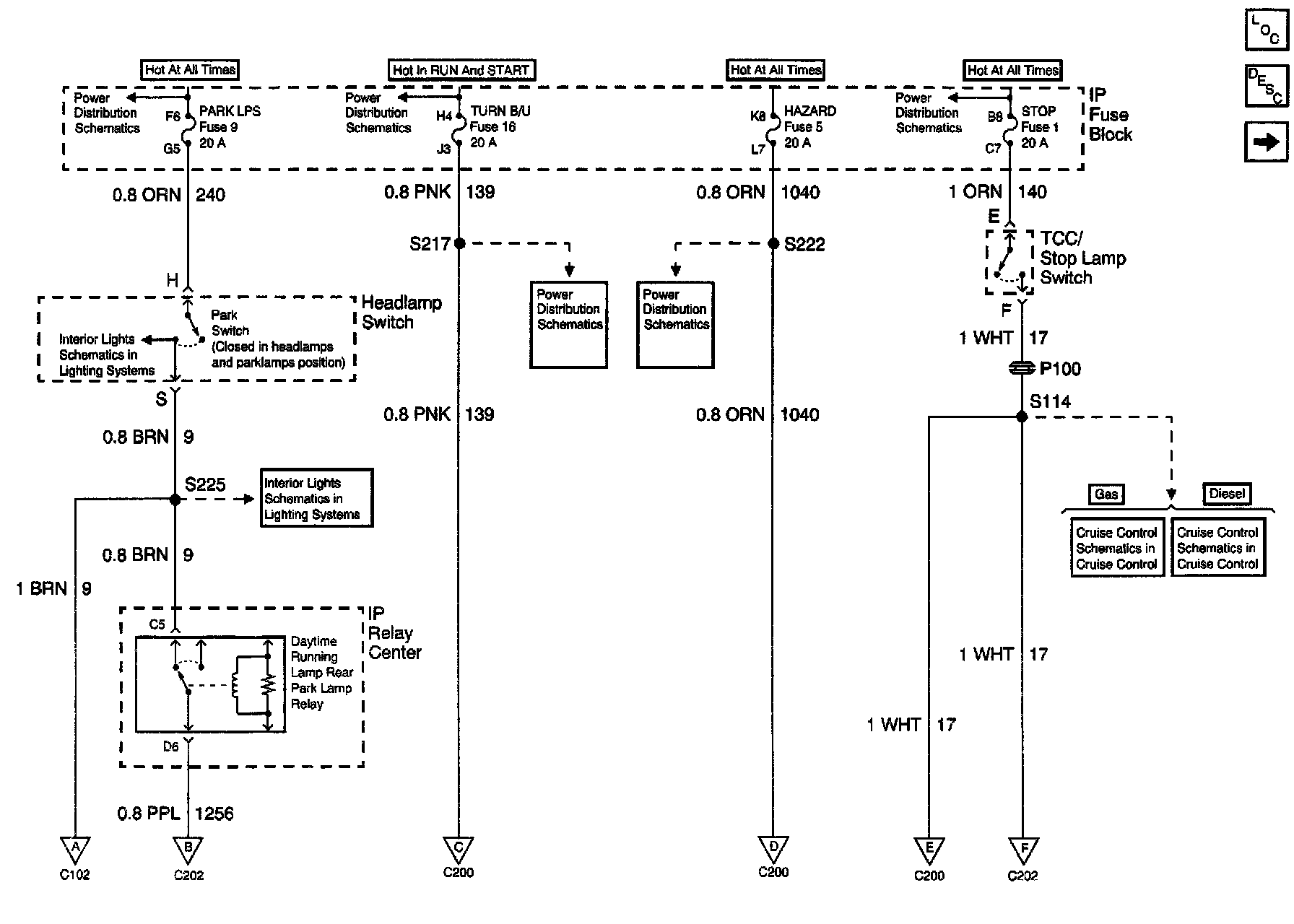

Exterior Lights Schematics (Export): PARK LPS, TURN B/U, HAZARD, and STOP Fuses:
