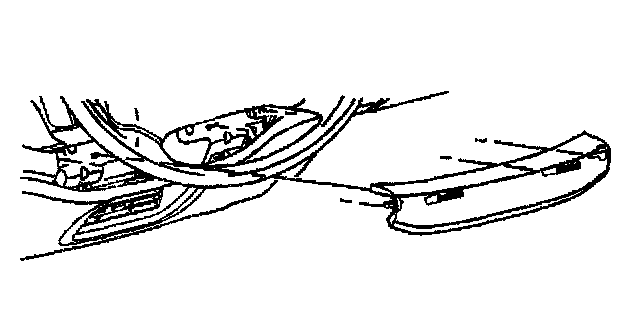

Instrument Panel Cluster (IPC) - Lower Filler Panel Replacement

REMOVAL PROCEDURE
1. Grasp the instrument panel cluster trim plate filler. Pull the trim plate filler in order to disengage the retainers.
2. Remove the instrument panel cluster trim plate filler from the vehicle.
3. Inspect the instrument panel cluster trim plate filler for broken or missing retainers.
Replace the retainers as needed.

INSTALLATION PROCEDURE
1. Install the instrument panel cluster trim plate filler to the vehicle.
2. Position the instrument panel cluster trim plate filler.
Push the filler in order to engage the retainers.
