GAUGES Fuse, Engine Coolant Temperature Gauge Sensor, G101

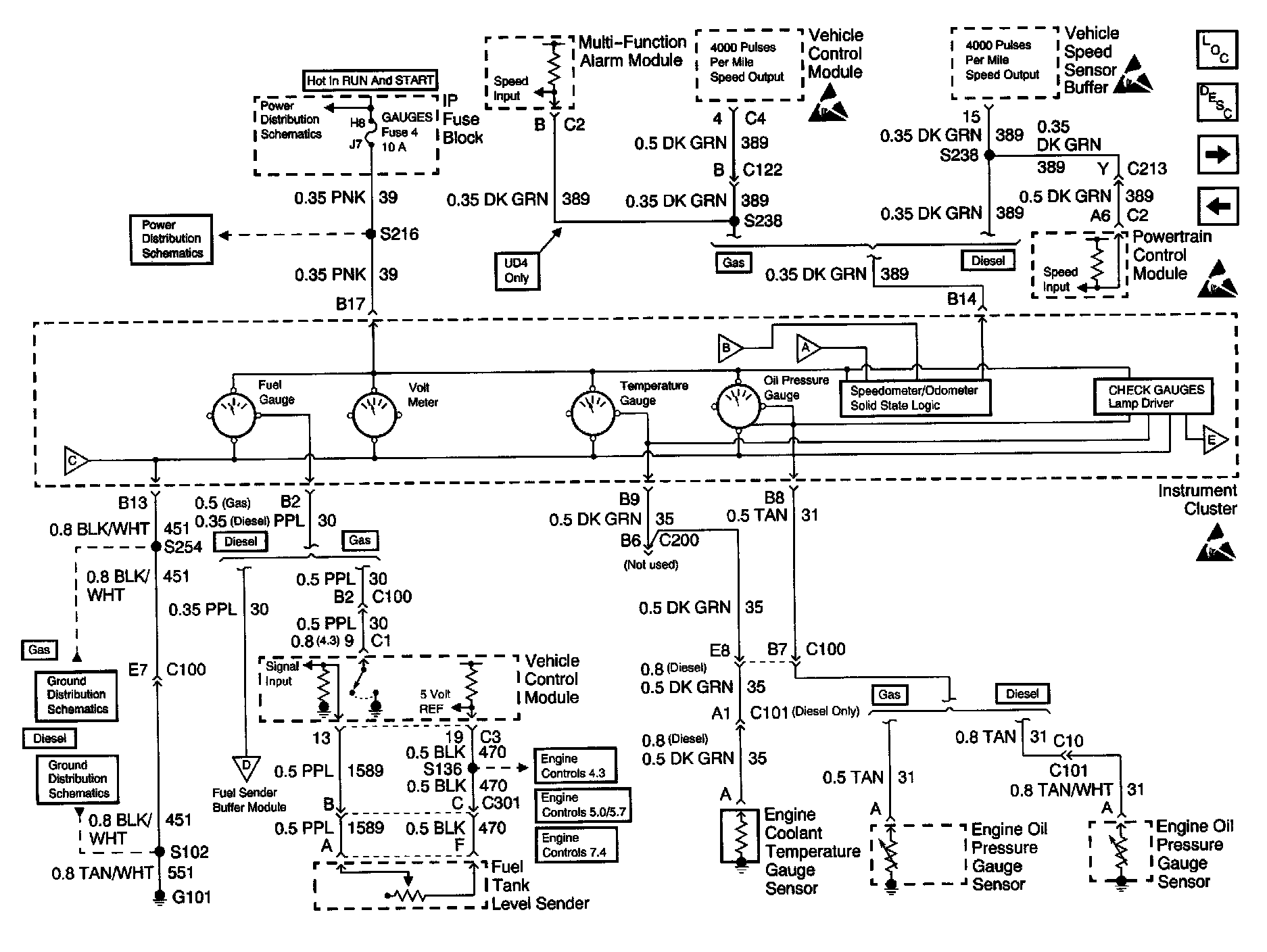

Instrument Cluster: Analog Schematics: GAUGES Fuse, Engine Coolant Temperature Gauge Sensor, G101:
