Air Conditioning Indicator Lamp: Service and Repair

REMOVAL PROCEDURE

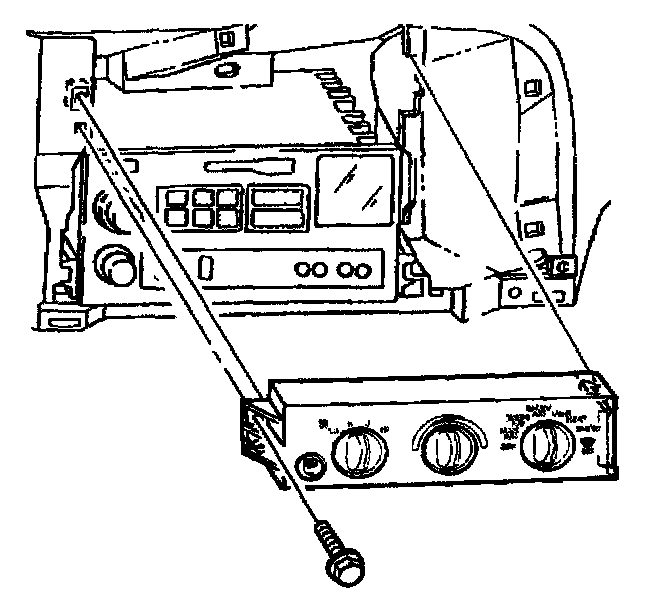

1. Remove the control assembly.

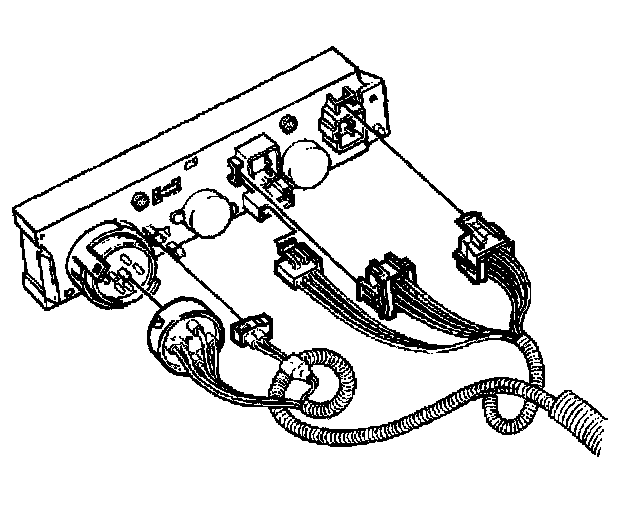

2. Pull the control assembly out far enough in order to reach the control assembly lamp bulb socket.




3. Use the following procedure in order to remove the lamp bulb and the socket:
3.1. Turn the lamp bulb and the socket 1/4 turn.
3.2. Gently lift the lamp bulb and the socket out of the control assembly.
4. Ensure that the control assembly lamp connections are free from the following conditions:
^ Corrosion
^ Damage
5. Clean or replace the connections, as necessary.

INSTALLATION PROCEDURE




1. Insert the new lamp bulb and the socket into the control assembly.
2. Secure the new lamp bulb and the socket to the control assembly with 1/4 turn.




3. Install the control assembly.
