Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Temperature Actuator Inoperative

Temperature Actuator Inoperative

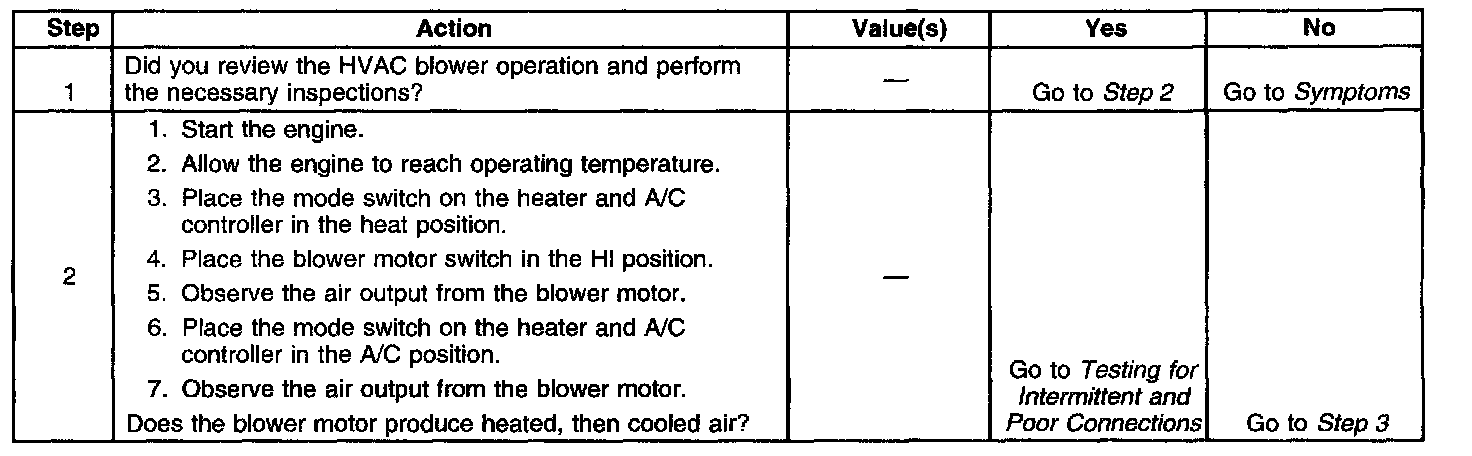

Steps 1-2:

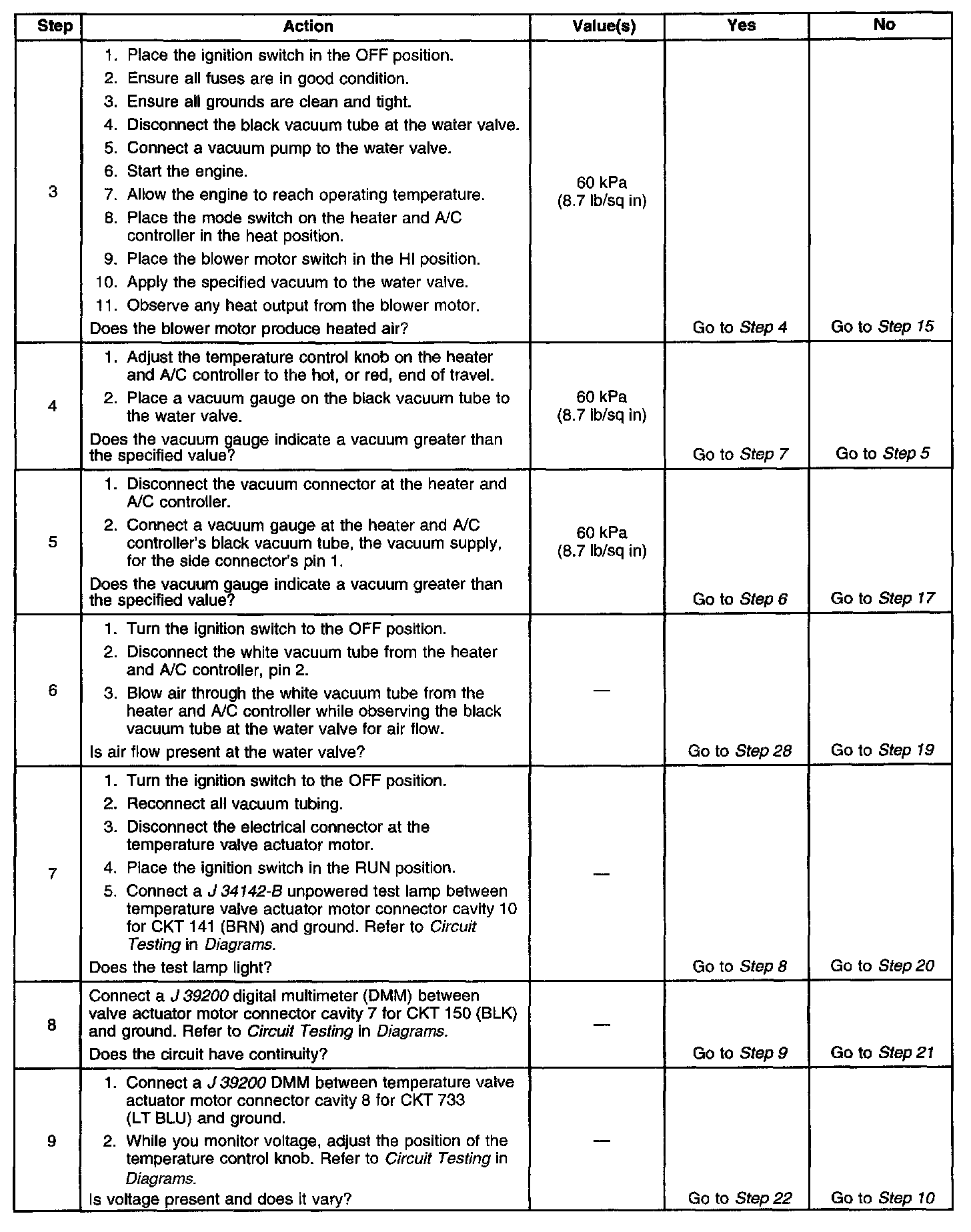

Steps 3-9:

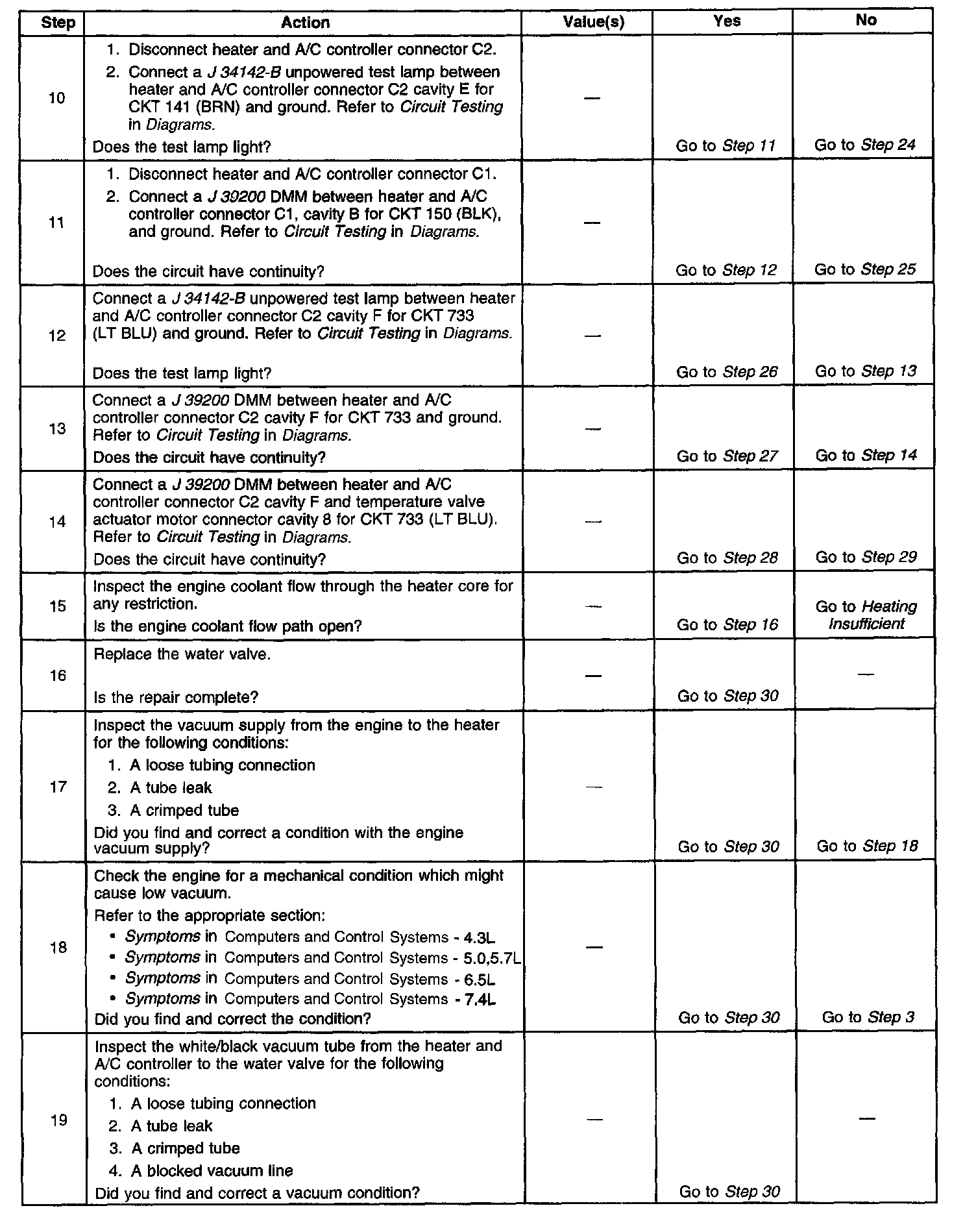

Steps 10-19:

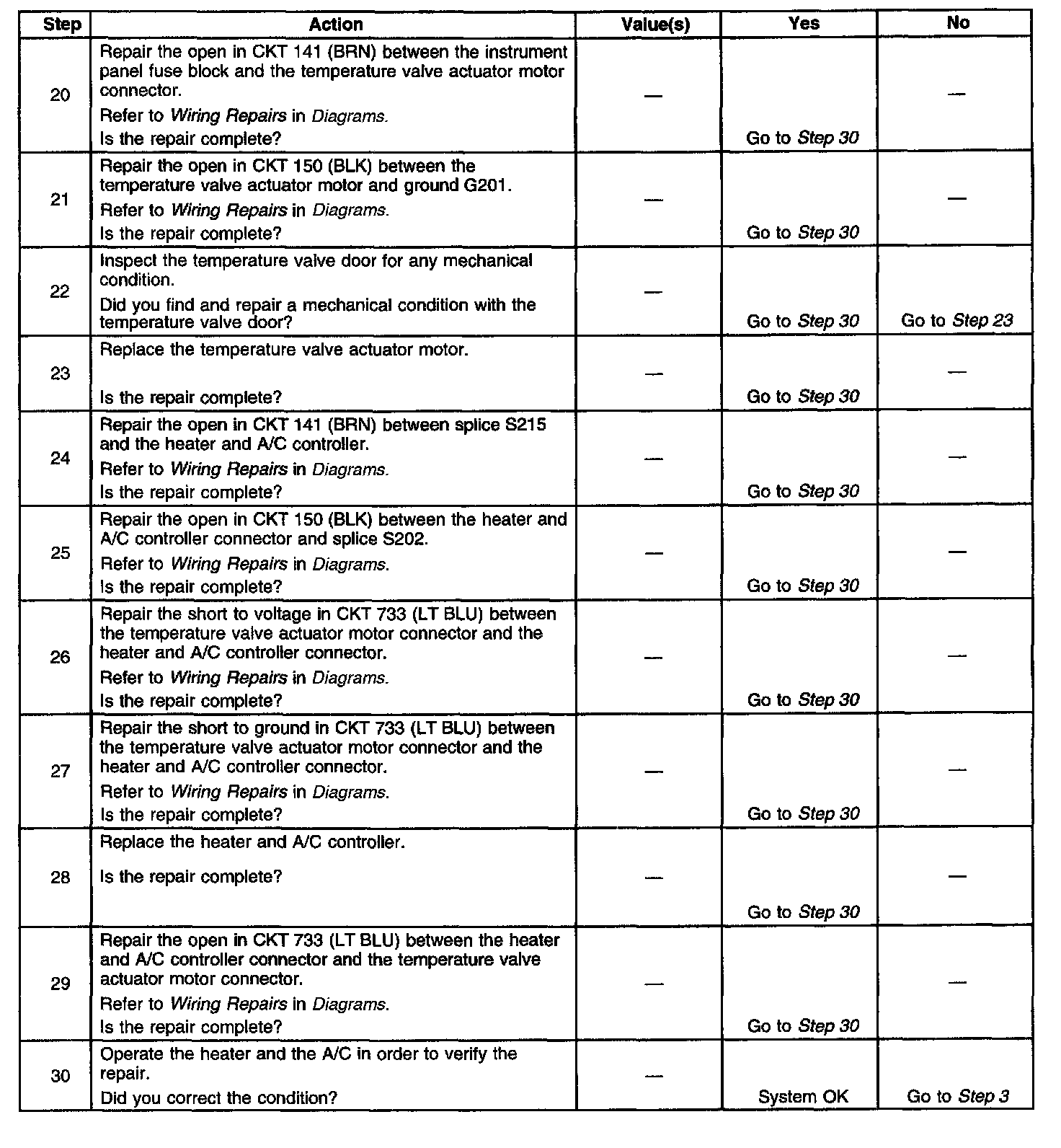

Steps 20-30:
