Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Blower Motor Inoperative at Any Speed

Blower Motor Inoperative at Any Speed

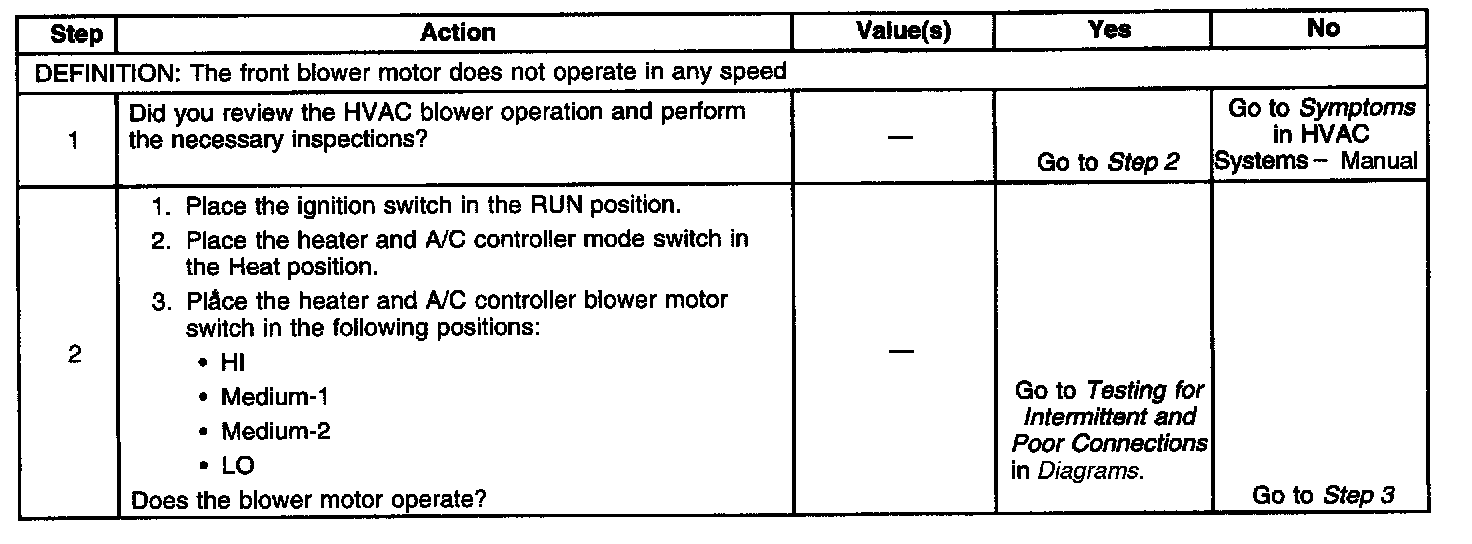

Steps 1-2:



Steps 3-12:

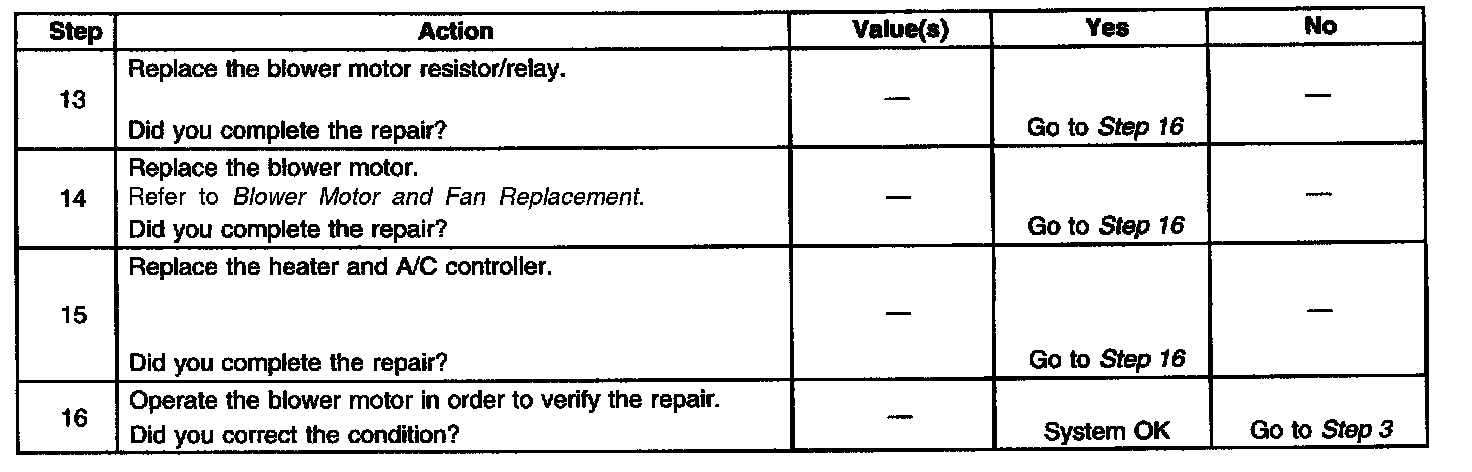

Steps 13-16:
