Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Blower Motor Inoperative Med-2

Blower Motor Inoperative Med-2

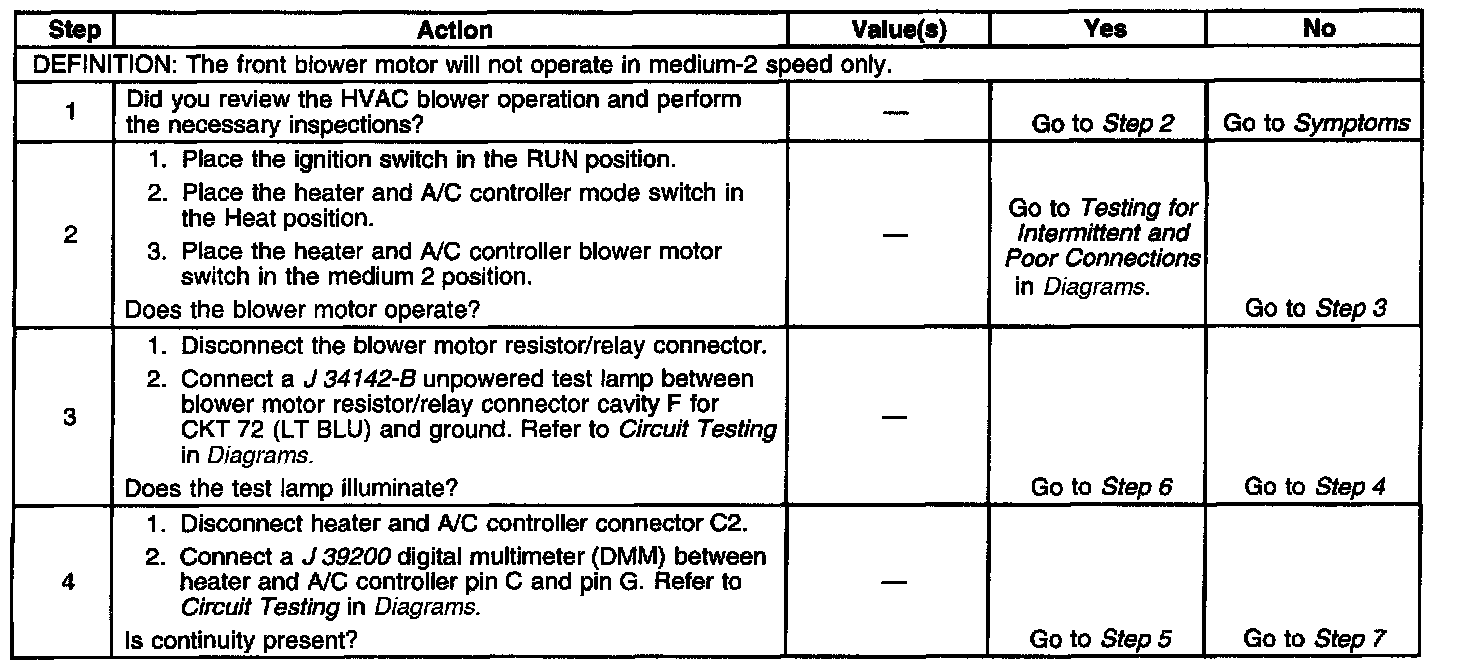

Steps 1-4:

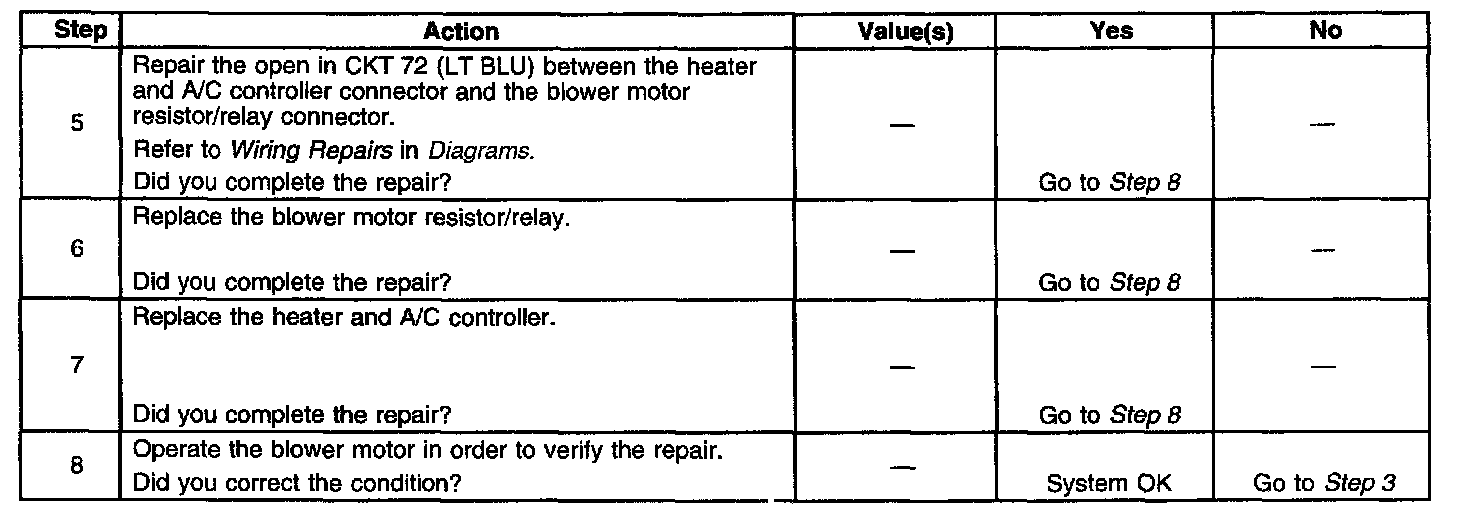

Steps 5-8:
