Right IP Air Outlet Duct

REMOVAL PROCEDURE




1. Remove the instrument panel cluster trim plate.

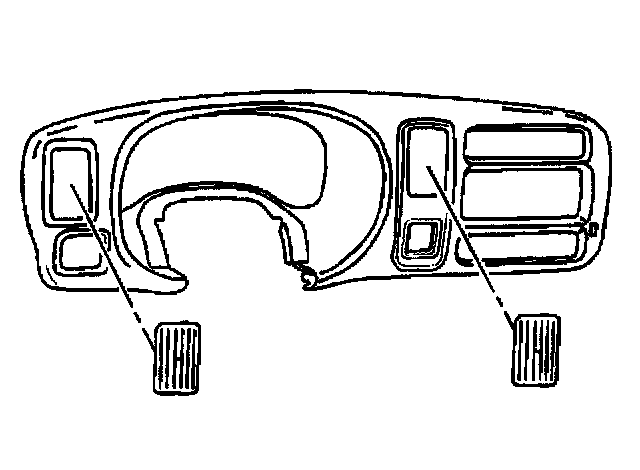

2. Remove the vent by unsnapping the retainers from the instrument panel cluster trim plate.

INSTALLATION PROCEDURE




1. Install the vent by snapping the retainers to the instrument panel cluster trim plate.
2. Install the instrument panel cluster trim plate.
