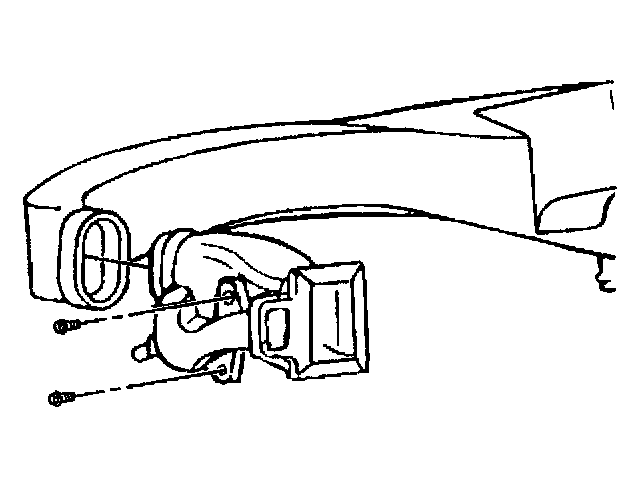

Left IP Air Outlet Duct

REMOVAL PROCEDURE




1. Remove the instrument panel cluster bezel.
2. Remove the retaining screws from the instrument panel.
3. Remove the air outlet duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the air outlet duct into the vehicle.
2. Install the retaining screws into the instrument panel.
3. Install the instrument panel cluster bezel.
