HVAC System - Manual
AIR DISTRIBUTOR DUCT REPLACEMENTREMOVAL PROCEDURE
1. Remove the engine cover.
2. Remove the left floor duct.
3. Remove the right floor duct.
4. Remove the center floor duct.
5. Remove the instrument cluster bezel.
6. Remove the left instrument panel outlet duct from the vehicle.
7. Roll out the instrument panel. Refer to IP Carrier Replacement in Instrument Panel, Gauges and Warning Indicators.

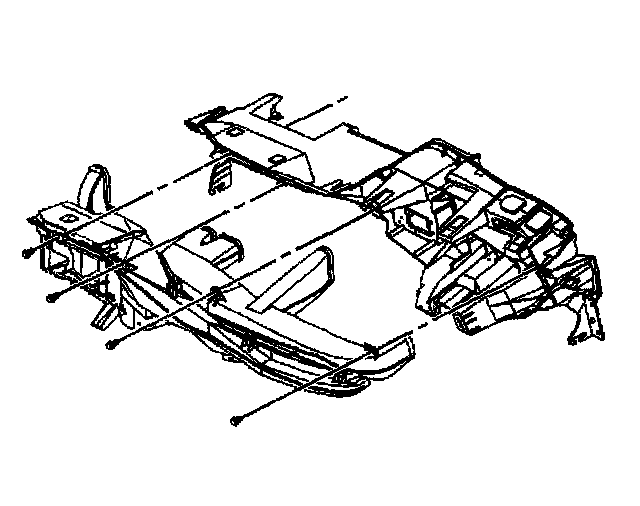

8. Remove the retaining screws at the air distribution case.
9. Remove the retaining screws at the instrument panel.
10. Remove the air distribution duct from the instrument panel.
INSTALLATION PROCEDURE
1. Install the air distribution duct to the instrument panel.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the retaining screws to the instrument panel.
3. Install the retaining screws to the air distribution case.
Tighten
Tighten the retaining screws to 4 N.m (35 lb in).
4. Roll in the instrument panel. Refer to IP Carrier Replacement in Instrument Panel, Gauges and Warning Indicators.
5. Install the left instrument panel outlet duct to the vehicle.
6. Install the instrument panel cluster bezel.
7. Install the center floor duct.
8. Install the right floor duct.
9. Install the left floor duct.
10. Install the engine cover.
