Exhaust Manifold Replacement - Right

Removal Procedure

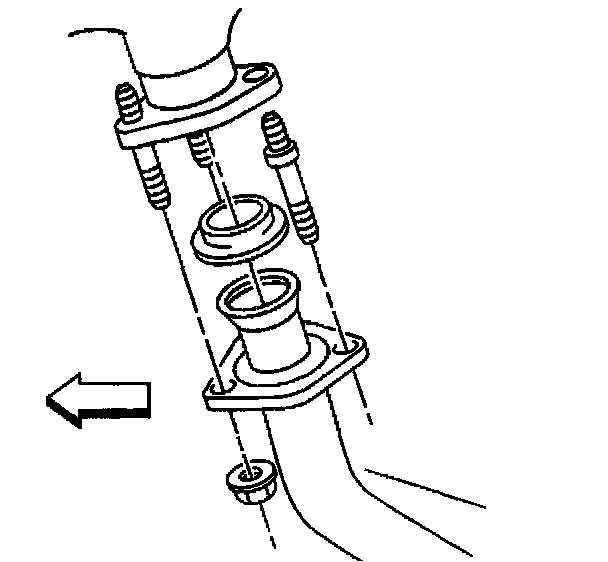

1. Remove the exhaust pipe from the exhaust manifold. Refer to Catalytic Converter Replacement.
2. Remove the engine cover. Refer to Engine Cover Replacement.
3. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement.
4. Remove the oil level indicator tube. Refer to Oil Level Indicator and Tube Replacement.

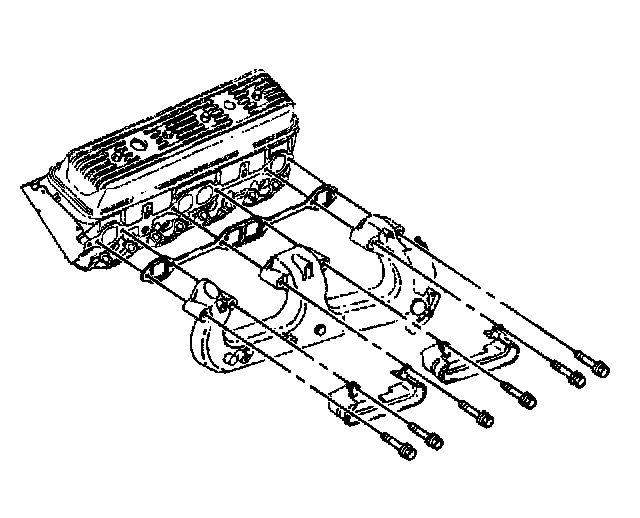

5. Remove the exhaust manifold. Refer to Exhaust Manifold Removal (Right).
6. Clean all sealing surfaces.


Installation Procedure





1. Install the exhaust manifold. Refer to Exhaust Manifold Installation (Right) in Engine / Service and Repair.
2. Install the oil level indicator tube. Refer to Oil Level Indicator and Tube Replacement





3. Install the exhaust pipe to the exhaust manifold. Refer to Catalytic Converter Replacement.
4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement.
5. Install the engine cover. Refer to Engine Cover Replacement.
