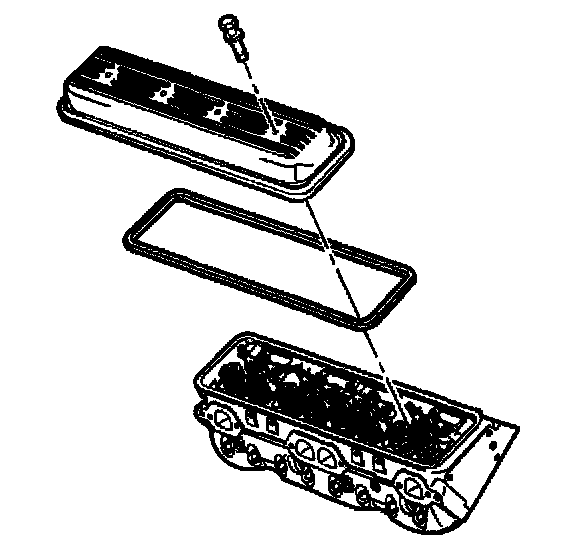

9. Valve Rocker Arm Cover Removal - Right
9. Valve Rocker Arm Cover Removal - Right
1.
Remove the valve rocker arm cover bolts and washers.
2.
Remove the valve rocker arm cover.
3.
Remove the valve rocker arm cover gasket.
4.
Discard the valve rocker arm cover gasket.
