Rear Crankshaft Main Bearing Seal: Service and Repair

^ Tools Required
- J 35621-B Crankshaft Rear Oil Seal Installer

Removal Procedure





1. Remove the transmission assembly. Refer to Transmission Replacement in Transmission and Drivetrain.
2. Remove the flywheel. Refer to Engine Flywheel Replacement.
3. Loosen the oil pan. Refer to Oil Pan Replacement.

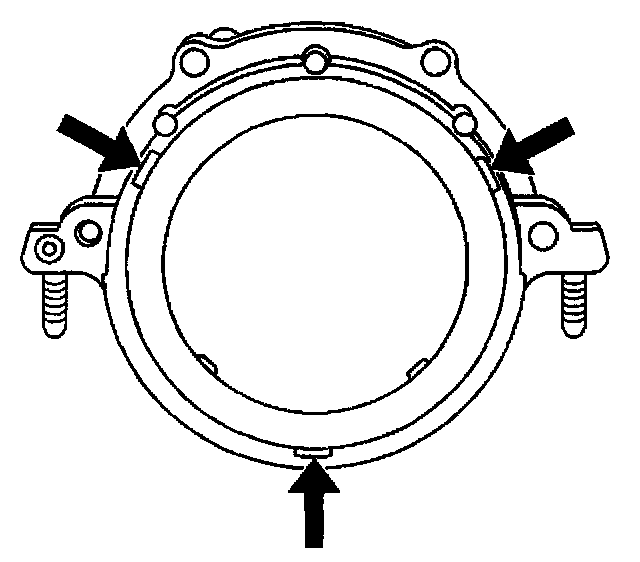

4. Remove the crankshaft rear oil seal from the crankshaft rear oil seal housing. Refer to Crankshaft Rear Oil Seal and Housing Removal.


Installation Procedure

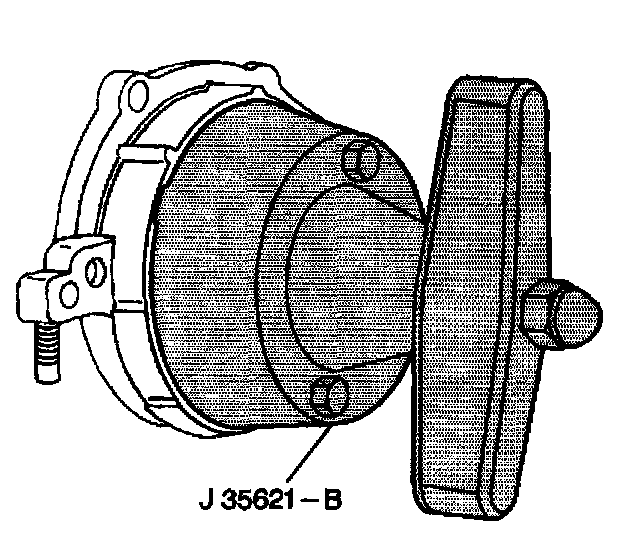

1. Install the crankshaft rear oil seal using J 35621-B. Refer to Crankshaft Rear Oil Seal and Housing Installation.
2. Tighten the oil pan. Refer to Oil Pan Replacement.
3. Install the flywheel. Refer to Engine Flywheel Replacement.
4. Install the transmission assembly. Refer to Transmission Replacement in Transmission and Drivetrain.
